Ubiquiti WAVE-PICO CPE PtMP y PtP 60GHz

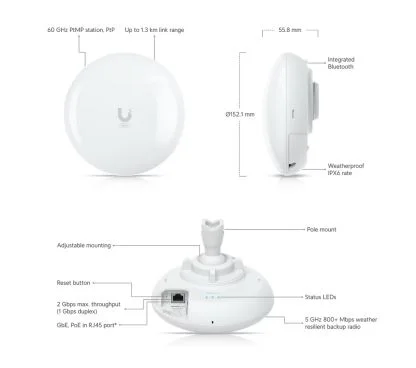

Ubiquiti WAVE-PICO Estación cliente PtMP y PtP de 60 GHz para redes Wave con radio de reserva en 5 GHz 60 GHz 5 GHz PtMP PtP PoE WiFi 6 Conecta tu red de larga distancia con la tecnología Wave de Ubiquiti. Este cliente PtMP y PtP opera en la banda de 60 GHz ofreciendo un rendimiento total de 2 Gbps, ideal para enlaces punto a punto o punto a multipunto. Cuenta con un radio de reserva en 5 GHz para garantizar la continuidad de la conexión si el enlace principal falla. Disfruta de una instalación sencilla y robusta gracias a su carcasa de policarbonato estabilizado con UV y certificación IPX6. Compatible con WAVE-AP y WAVE-AP-Micro, alcanza distancias de hasta 1,3 km o 0,9 km respectivamente. Su diseño compacto y bajo consumo lo convierten en la solución perfecta para expandir tu infraestructura de red exterior sin complicaciones. Especificaciones técnicas Software Operating mode PtMP station, PtP Ubiquiti specific features Wave AI, discovery protocol Services UISP, ping watchdog, NTP client, SNMP Tools Antenna alignment, discovery utility, ping, trace route, speed test Network Bridge/Router* mode *Router is available in PtMP station mode only. Application requirements UISP web: Version 2.4.61 and later UISP mobile iOS™: Version 2.32.0 and later UISP mobile Android™: Version 2.31.9 and later Total throughput 2 Gbps (1 Gbps duplex) Max. range Up to 1.3 km (Wave AP) Up to 0.9 km (Wave AP Micro) Encryption WPA2-PSK (AES) Operating frequency 57–71 GHz *Depends on regulatory region. Channel bandwidth 2160, 1080 MHz Operating channels 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. Modulation 16QAM, QPSK Antenna gain 27.7 dBi Polarization Vertically linear Beamwidth Azimuth: 3 dB 6° Elevation: 3 dB 6° WiFi standard 802.11ax (WiFi 6) Operating frequency* US/CA Worldwide U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5180 - 5875 MHz *Depends on regulatory region. Channel bandwidth 20, 40, 80 MHz Modulation BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) Antenna gain 9 dBi Polarization Dual-linear Beamwidth Azimuth: 3 dB 50° Elevation: 3 dB 50° Cross-pol isolation 15 dB Alimentación Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress Ethernet Flashing blue: Ethernet traffic detected Links White: 5 GHz link Blue: 60 GHz link Hardware Processor Dual-core ARM® Cortex®-A53 at 1 GHz Memory DDR3L 512 MB Networking interface (1) GbE RJ45 port Max. power consumption 10W Power method Passive PoE 4-pairs (1, 2+ 3, 6-) (4, 5+ 7, 8 -) Passive PoE 2-pairs (4, 5+ 7, 8 -) , for 44–54V DC only Alimentación 48V DC, 0.5A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch Supported voltage range 44–54V DC GPS No Button Factory reset LEDs Power, Ethernet, link Temperatura de funcionamiento 40 to 60° C (-40 to 140° F) Humedad de funcionamiento 5 to 95% noncondensing Certifications FCC, IC, CE Características Aviso importante no se aceptan devoluciones una vez abierto Dimensiones Ø152.1 x 55.8 mm (Ø6 x 2.2") Peso Without mount: 347 g (12.2 oz) With mount: 409 g (14.4 oz) Enclosure material UV stabilized polycarbonate Mount material UV stabilized polycarbonate Pole mount diameter 20 to 53.1 mm (0.8 to 2.1") on pipe outer diameter Wind loading 31.3 N at 200 km/h (7 lbf at 125 mph) Weatherproofing IPX6 Con Wave AP 1,3 km Con Wave AP Micro 0,9 km Rendimiento máx. 2 Gbps (1 Gbps dúplex)
