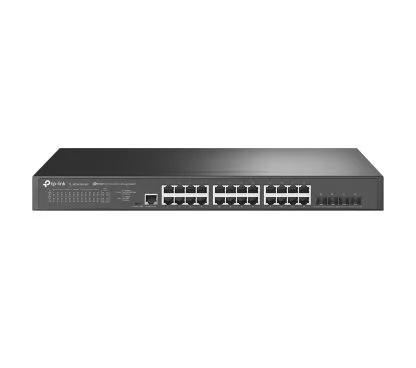

TP-Link TL-SG3428X-M2
Switch gestionado Omada de 24 puertos 2.5G y 4 puertos SFP+ 10G
24 puertos 2.5G RJ454 puertos SFP+ 10GSwitching Capacity 200 Gbps148.80 MppsVLAN 802.1QLACP 802.3adIP-MAC-Port BindingZero-Touch Provisioning
Este switch Omada de 1U ofrece una arquitectura de red robusta con 24 puertos de 2.5 Gbps y 4 ranuras SFP+ de 10 Gbps para enlaces de alta velocidad. Ideal para conectar servidores, almacenamiento o enlaces troncales, garantiza una transferencia de datos masiva con un rendimiento de 148.80 Mpps y una capacidad de conmutación de 200 Gbps, optimizando el flujo de tráfico en entornos empresariales exigentes.
Gestiona tu infraestructura con total control mediante la suite Omada, que permite acceso en la nube y configuración centralizada. Cuenta con funciones de seguridad avanzadas como IP-MAC-Port Binding, listas de control de acceso (ACL), prevención de ataques DoS y control de tormentas. Su gestión flexible soporta interfaces web, CLI, SNMP y RMON, facilitando el despliegue rápido con Zero-Touch Provisioning y el monitoreo inteligente de la red.
Especificaciones técnicas
SOFTWARE FEATURES
Quality of Service8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS RemarkL3 Features32 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP - 128 Static Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 RelayL2 and L2+ FeaturesLink Aggregation - static link aggregation - 802.3ad LACP - Up to 8 aggregation groups, containing 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, Root Protect • Loopback Detection - Port based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/BothL2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • MVR • Multicast Filtering: 256 profiles and 16 entries per profileAdvanced FeaturesAutomatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot ScheduleVLANVLAN Group - Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 256 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLANAccess Control ListTime-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL -Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLANSecurityIP-MAC-Port Binding - 512 Entries - DHCP Snooping - ARP Inspection - IPv4 Source Guard: 100 Entries • IPv6-MAC-Port Binding - 512 Entries - DHCPv6 Snooping - ND Detection - IPv6 Source Guard: 100 Entries • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • 802.1X - Port base authentication - Mac base authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication andaccountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access controlIPv6IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTPMIBsMIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBOmada AppYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software ControllerCloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.Management FeaturesWeb-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3 - Trap/Inform - RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System LogCertificacionesCE, FCC, RoHSPackage ContentsTL-SG3428X-M2 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber FeetSystem RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.EnvironmentOperating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
HARDWARE FEATURES
Interfaz24× 2.5 Gbps RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console PortFan Quantity1Alimentación100-240 V AC~50/60 HzDimensiones17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)MountingRack MountableConsumo máximo45.1 W (110V/60Hz)Max Heat Dissipation154.38 BTU/h (110 V/60 Hz)Switching Capacity200 GbpsPacket Forwarding Rate148.80 MppsMAC Address Table32 KPacket Buffer Memory16 MbitJumbo Frame9 KB
Características
10G Lightning-Fast Uplink4× 10 Gbps SFP+ISP features can only be configured in standalone mode.
