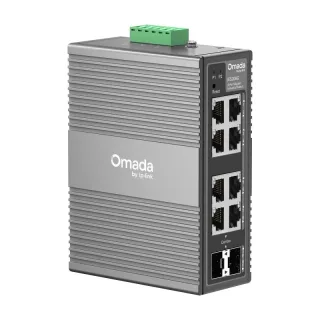

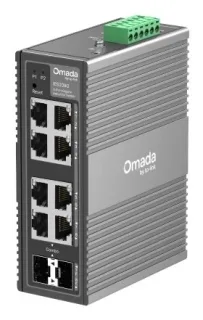

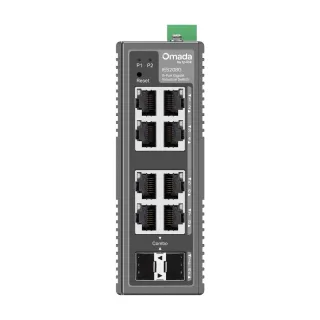

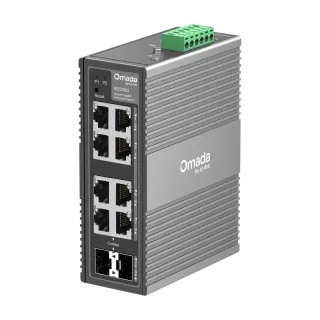

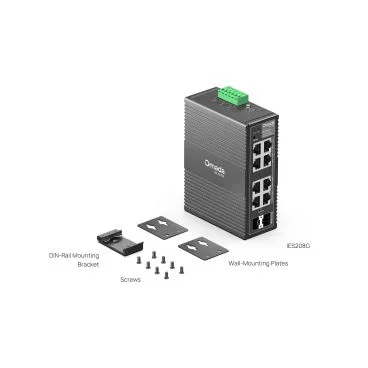

TP-Link IES208G
Switch industrial gestionable de 8 puertos con carril DIN y funcionamiento sin ventilador
8 puertos Gigabit2 puertos Combo SFPCarril DINSin ventiladorProtección de sobretensionesGestión Omada
Este switch industrial de TP-Link está diseñado para entornos exigentes, operando en un rango de temperaturas extremas de -40 a 75 grados. Su robusta construcción sin ventiladores garantiza un funcionamiento silencioso y fiable, ideal para instalaciones en exteriores o zonas con polvo y vibraciones.
Disfruta de una gestión centralizada y sencilla a través de la suite Omada, permitiendo configurar todos tus dispositivos de red desde una única interfaz. Cuenta con características avanzadas como VLAN, QoS y agregación de enlaces para optimizar el rendimiento y la seguridad de tu infraestructura de red empresarial.
Especificaciones técnicas
General

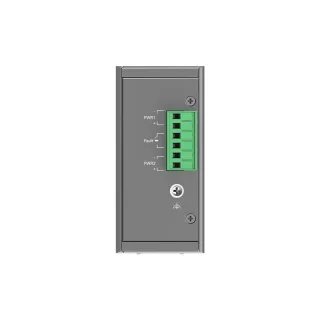

Ventilator AantalFanlessUitgangsvermogen9.6-60V 1+1 Redundant DC Power InputAfmetingen ( B x D x H )5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)Surge Protection±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input portsSchakelvermogen16 GbpsPacket Forwarding Tarief11.9 MppsMAC Address Table8KPacket Buffer Geheugen4 MbitJumbo Frame15 KBKwaliteit van de Dienst (QoS)802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast ControlL2-FunctionaliteitLink Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)L2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast LeaveVLANMTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VIDTransmissie MethodeStore-And-ForwardOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement FeaturesWeb-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †CertificatieFCC, CE, RoHSPakketinhoudIES208G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation GuideOmgevingOperating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensingProfessional Industrial-Grade Design40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power InputAbundant FeaturesVLAN, QoS, and STP/RSTPInterfaz6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIXInstalaciónDIN-rail mounting • Wall mounting
