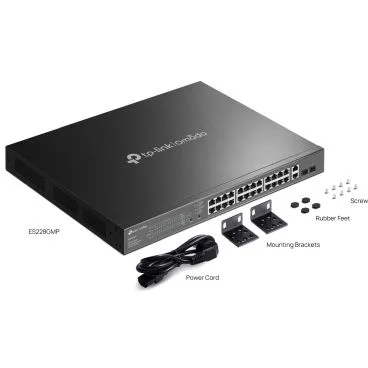

TP-Link ES228GMP
Conmutador gestionable fácil de 28 puertos Gigabit con 24 puertos PoE+
24 puertos PoE+Presupuesto 384WPuertos SFPCaja metálicaRackmountableReinicio PoE
Este conmutador Omada de 28 puertos combina alta potencia y gestión sencilla para redes de seguridad y videovigilancia. Dispone de 24 puertos Gigabit con alimentación PoE+ de hasta 30W cada uno, gestionando un presupuesto total de 384W para alimentar múltiples dispositivos sin problemas.
Diseñado para entornos exigentes, cuenta con una carcasa de acero robusta y protección contra sobretensiones. La función de recuperación automática de PoE garantiza la continuidad del servicio incluso ante fallos de alimentación, mientras que la gestión centralizada mediante la aplicación Omada simplifica la configuración y el mantenimiento de toda la red.
Especificaciones técnicas
HARDWARE FEATURES
Interfaz24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIXFan Quantity2InstalaciónRackmountablePhysical Security Lock√Alimentación100–240V AC, 50/60HzPoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 384W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery ‡ • Up to 250m PoE transmission distanceDimensiones17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)Surge Protection±6kVSwitching Capacity56 GbpsPacket Forwarding Rate29.76 MppsMAC Address Table8KPacket Buffer Memory4 MbitJumbo Frame15 KB
Características
26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)2× Gigabit SFP port384W Power Budget, with up to 30W for each PoE portEasy to UseSupports plug-and-play for instant connectivity and simple configuration for additional featuresCentralized Cloud Management via the web or the Omada app†Up to250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networkingAutomatic Loop Prevention, VLAN, and IGMP SnoopingDurable metal casing and rack-mountable design
SOFTWARE FEATURES
Quality of ServicePort-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control ?L2 FeaturesStatic Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDPL2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast LeaveVLANMTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VIDTransmission MethodStore-And-ForwardOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement FeaturesWeb-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †CertificacionesFCC, CE, RoHSPackage ContentsES228GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation GuideEnvironmentOperating Temperature: -5?~45? (23?~113?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
