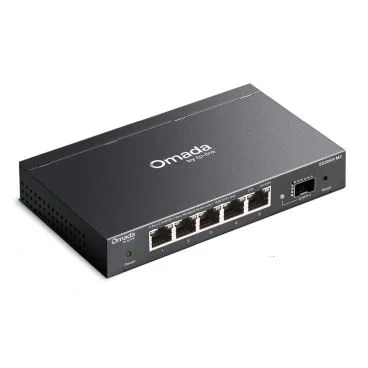

TP-Link ES206X-M2
Interruptor gestionable fácil de 5 puertos 2.5G con ranura SFP+ de 10G para redes de alta velocidad
5 puertos 2.5 Gbps1 ranura SFP+ 10 GbpsGestión Omada SDNSin ventiladoresProtección de sobretensionesVLAN 802.1QIGMP Snooping
Este interruptor Omada simplifica la gestión de redes empresariales con su capacidad de gestión centralizada a través de la aplicación o controladores de hardware. Su diseño sin ventiladores garantiza un funcionamiento silencioso y fiable, ideal para escritorios o montajes en pared, protegiendo tus equipos contra sobretensiones de hasta 6kV.
Optimiza el rendimiento con puertos de 2.5 Gbps y una ranura SFP+ de 10 Gbps para conectar switches superiores. Cuenta con características avanzadas como agregación de enlaces estática, prevención de bucles, QoS basado en puertos y soporte para jumbo frames, todo ello gestionable desde una interfaz web intuitiva o la nube.
Especificaciones técnicas
SOFTWARE FEATURES
Quality of ServicePort-based/802.1p/DSCP QoS ? • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast ControlL2 FeaturesStatic Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDPL2 MulticastIGMP Snooping - IGMP v1/v2/v3 Snooping - Fast LeaveVLANMTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VIDTransmission MethodStore-And-ForwardOmada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Centralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based ControllerManagement FeaturesWeb-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †CertificacionesFCC, CE, RoHSPackage ContentES206X-M2 • Power Adapter • Rubber Feet • Installation GuideEnvironmentOperating Temperature: -5?~40? (23?~104?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing
HARDWARE FEATURES
Interfaz5× 2.5 Gbps RJ45 Ports • 1× 10 Gbps SFP+ Slot • Auto-Negotiation/Auto MDI/MDIXFan QuantityFanlessInstalaciónDesktop • Wall MountPhysical Security Lock√AlimentaciónAC/DC Adapter (Input: 100-240V AC; Output: 12V DC/1A)Dimensiones6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)Surge Protection±6kV for Ethernet PortsPacket Buffer Memory640 KBJumbo Frame10 KBSwitching Capacity45 GbpsPacket Forwarding Rate33.48 MppsMAC Address Table16K
Características
Easy to UseSupports plug-and-play for instant connectivity and simple configuration for additional features
