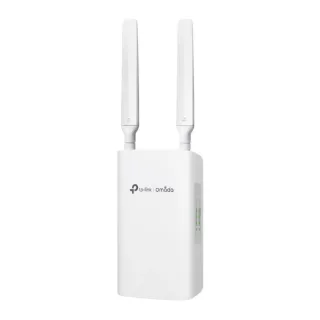

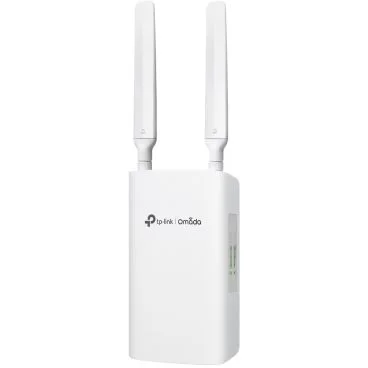

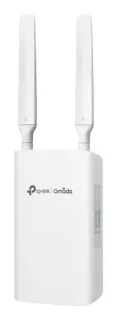

TP-Link ER703WP-4G-Outdoor
Router Omada 4G+ Cat6 AX3000 para uso interior y exterior con Wi-Fi 6
3 puertos Gigabit WAN/LANEntrada PoE 802.3btSalidas PoE 45WNano SIMWi-Fi 6 AX3000Antenas LTE desmontables
Este router Omada combina conectividad móvil y fija en un solo dispositivo robusto. Gracias a su capacidad para funcionar como puerta de enlace 4G y Ethernet, garantiza una conexión estable incluso si falla el proveedor principal. Su diseño permite instalación en poste o pared, ideal para zonas rurales o como respaldo de red.
Disfruta de una experiencia inalámbrica rápida con Wi-Fi 6, aprovechando las antenas internas y externas para cubrir grandes espacios. La gestión centralizada a través de la plataforma Omada facilita el control de múltiples dispositivos. Además, ofrece funciones avanzadas de seguridad, filtrado web y balanceo de carga para optimizar el rendimiento de tu red.
Especificaciones técnicas
CARACTERÍSTICAS INALÁMBRICAS
Funciones AvanzadasSeamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio)Red de InvitadosSupportTipo de conexión WANStatic IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TPClonado MACModify WAN AddressDHCPDHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCPSMSReceive / Send SMSIPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address modeVLAN802.1Q VLANIPTVIGMP v2/v3 Proxy, Custom Mode, Bridge ModeACLIP/Port/Protocol/Domain Name FilteringEnrutamiento AvanzadoStatic Routing • Policy Routing • RIP • OSPFControl de Ancho de BandaIP-Based Bandwidth ControlBalanceo de CargaIntelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online DetectionNATOne-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnPLímite de sesiónIP-Based Session LimitGREOnly in Standalone ModeSSL VPN50 TunnelsVPN IPsec100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)VPN PPTPPPTP VPN Server • PPTP VPN Client (10) • 50 Tunnels • PPTP with MPPE EncryptionVPN L2TPL2TP VPN Server • L2TP VPN Client (10) • 50 Tunnels • L2TP over IPSecOpenVPNOpenVPN Server • OpenVPN Client (5) • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full ModeWireGuard VPN20 TunnelsAutenticación webNo Authentication • Simple Password • Hotspot (Local User / Voucher / SMS / Radius) • External Radius Sever • External Portal Sever • LDAPOmada AppYes.Gestión CentralizadaOmada Cloud Essentials • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software ControllerAcceso a la nubeYes.ServicioDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)MantenimientoWeb Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute) • NTP Synchronize • Port Mirroring • CLI (only in Standalone Mode) • Syslog SupportFunciones de gestiónAutomatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration
Otros
CertificacionesCE, FCC, RoHSContenido del PaqueteER703WP-4G-Outdoor • Mounting Kits • Quick Installation GuideRequisitos del sistemaMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or LinuxFactores AmbientalesOperating Temperature: -30 °C to 60 °C (-22 °F to 140 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 90% non-condensing
RENDIMIENTO
DPI ThroughputTCP: 1131 Mbps • UDP: 974 MbpsGREUnencrypted: 450.3Mbps • Encrypted: 277.6MbpsWireGuard VPN462.8MbpsSesiones Concurrentes120,000Nuevas sesiones/Segundos3,800NAT (IP Estática)945.9Mbps / 950.2MbpsNAT(DHCP)947.3Mbps / 949.4MbpsNAT(PPPoE)916.9Mbps / 946.3MbpsNAT (L2TP)878.9Mbps / 778.9MbpsNAT (PPTP)852.2Mbps / 775.9MbpsRendimiento VPN IPsecESP-SHA1-AES256: 568.3Mbps • ESP-SHA256-AES256: 559.8Mbps • ESP-SHA384-AES256: 565.6Mbps • ESP-SHA512-AES256: 550.0 MbpsOpenVPN85.1MbpsRendimiento VPN L2TPUnencrypted: 858.7Mbps • Encrypted: 467.0MbpsRendimiento VPN PPTPUnencrypted: 876.2Mbps • Encrypted: 182.6MbpsRendimiento VPN SSL86.6Mbps66 Byte Packet forwarding rate1,453,489 pps / 1,453,489 pps1,518 Byte Packet forwarding rate81275 pps / 81275 pps
CARACTERÍSTICAS DE HARDWARE

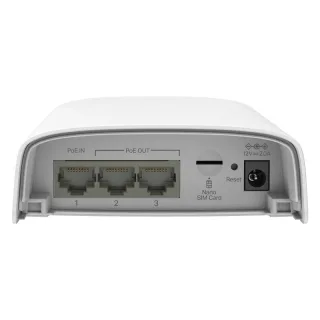

Interfaz3 Gigabit WAN/LAN PortsMedios de Red10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)BotonesReset ButtonFuente de Alimentación802.3at/bt PoE; 12VDC / 2A Power AdapterFrecuencia wifi y tasa de señal2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)Flash256 MB NANDDRAM512 MB DDR4LED4G Signal, WLAN, WAN/LAN, SYSDimensiones6.9 × 4.0 × 1.5 in (174.8 × 100.4 × 38.7 mm) (Antenna dimensions are not included)AntenasWi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas • LTE: Two 4.0dBi omnidirectional detachable antennasMontajePole/Wall-MountingConsumo de Potencia MáximoPOE:62.9W max @ 220V/50Hz 25? DC: 16.6W max @ 220V/50Hz 25?
Características
Network TypeLTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9 00/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41SIM Type1× Nano SIM CardFrequencyDownlink: 300 Mbps; • Uplink: 50 MbpsDPIApplication control via DPI / Updated app libraryControl de AccesoSource/Destination IP Based Access ControlFiltradoWeb Group Filtering • URL Filtering • Web SecurityInspección ARPSending GARP Packets • ARP Scanning • IP-MAC BindingDefensa contra AtaquesTCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
