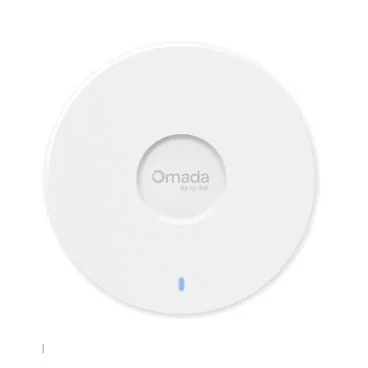

TP-Link EAP727
Punto de acceso Wi-Fi 7 de 5 streams con tecnología BE5000 para redes de alta velocidad
Wi-Fi 7MLOPoE+160 MHz4K-QAM510 clientes
Este punto de acceso de techo TP-Link redefine la conectividad inalámbrica con sus capacidades Wi-Fi 7. Gracias a la operación de múltiples enlaces y un ancho de banda de 160 MHz, ofrece una experiencia de navegación fluida y baja latencia ideal para entornos exigentes.
Con un rendimiento de hasta 4324 Mbps en la banda de 5 GHz y soporte para hasta 510 dispositivos simultáneos, garantiza una cobertura robusta de hasta 185 m². Su gestión centralizada Omada y alimentación flexible PoE facilitan una instalación sencilla y escalable.
Especificaciones técnicas
WIRELESS FEATURES
Coverage2,000 ft² (185 m²)Concurrent Clients510+Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax/beFrequency2.4 GHz and 5 GHzSignal Rate688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)Wireless FunctionsMLO ‡ • 4K-QAM ‡ • Seamless Roaming • 160 MHz Bandwidth ‡ • Mesh § • OFDMA ‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • Radius Accounting • MAC AuthenticationWireless SecurityCaptive Portal Authentication § • Access Control • MAC Filter • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission Power4-26 dBm (2.4 GHz) 6-27 dBm (5 GHz, U-NII-1 & U-NII-2A & U-NII-2C & U-NII-3)Omada AppYes (Omada App V5.0 and above)Centralized ManagementOmada Central (Cloud-Based) • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Require the use of Omada Controller.Email AlertsSíLED ON/OFF ControlSíManagement MAC Access ControlSíSNMPv1, v2c, v3System Logging Local/Remote SyslogSíSSHSíWeb-based ManagementSíCertificacionesFCC/CE/VCCI/JRF/ICESPackage ContentEAP727 • Installation Guide • Mounting KitEnvironmentOperating Temperature: 0? to +40? (32? to +104?) • Storage Temperature : -40? to +70? (-40? to +158?) • Operating Humidity: 10% to 90% (non-condensing) • Storage Humidity: 5% to 90% (non-condensing) • Storage Altitude: up to + 2000 m (6561 feet) • Operating Altitude: up to + 2000 m (6561 feet)
HARDWARE FEATURES
Interfaz1× 2.5 Gbps Ethernet PortButtonResetAlimentación802.3at PoE • 12V/1.5A DC Note?DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.Peso0.47 kg (1.04 lb)Dimensiones6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)Antenna2.4 GHz: 2 × 4 dBi • 5 GHz: 3 × 6 dBiBluetooth1 × 4 dBi (peak gain), internal antennaMountingCeiling/Wall/Junction Box Mounting (Kits included) • T-Bar Mounting (Kits included)Max. Power Consumption17.5 W (PoE) • 15.8 W (DC)
Características
5-Stream Wi-Fi 7†Low Latency and Interference‡The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
