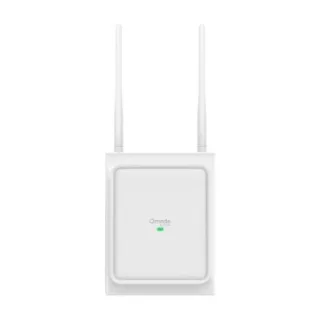

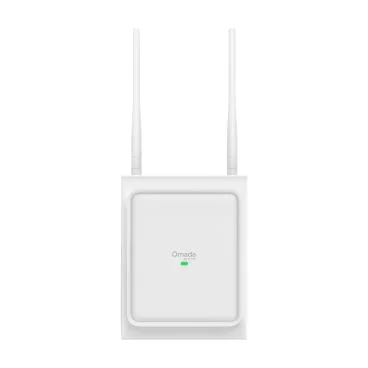

TP-Link EAP725-Outdoor
Punto de acceso Wi-Fi 7 dual banda para uso interior y exterior con carcasa resistente al agua IP66
Wi-Fi 7IP66PoEAntenas direccionalesMLOOmada Mesh
Este punto de acceso de la serie Omada combina tecnología Wi-Fi 7 con una carcasa hermética IP66, ideal para instalaciones en exteriores o zonas difíciles. Su diseño inteligente detecta automáticamente si se instalan antenas externas para ajustar el patrón de cobertura, ofreciendo flexibilidad total para cubrir áreas amplias o puntos específicos sin necesidad de obras.
Disfruta de velocidades máximas de hasta 688 Mbps en 2.4 GHz y 2882 Mbps en 5 GHz gracias a sus antenas omnidireccionales y direccionales integradas. La gestión centralizada a través de Omada simplifica la configuración, mientras que la alimentación PoE reduce los costes de instalación al transmitir datos y energía por un solo cable Ethernet.
Especificaciones técnicas
WIRELESS FEATURES
Wireless StandardsIEEE 802.11a/g/b/n/ac/ax/beFrequency2.4 GHz, 5 GHzSignal Rate688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)Wireless Functions4k-QAM • OFDMA • Multiple SSIDs: 16 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MLO • Omada Mesh § • Seamless Roaming(802.11k/v/r) § • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lPWireless SecurityCaptive Portal Authentication § • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWETransmission PowerCE: (EIRP) 2.4 GHz: 20 dBm 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C • FCC: (Conducted Power) 2.4 GHz: 25 dBm 5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3Omada AppSíCentralized ManagementOmada Cloud-Based Controller • Omada Hardware Controller • Omada Software ControllerCloud AccessYes. Require the use of an Omada controller.Email AlertsSíManagement MAC Access ControlSíSNMPv1, v2c, v3System Logging Local/Remote SyslogSíSSHSíWeb-based ManagementSíL3 ManagementSíMulti-site ManagementSíManagement VLANSíZero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based ControllerCertificacionesCE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMIPackage ContentAccess Point EAP725-Outdoor • Waterproof Kit • Mounting Kit • Installation GuideSystem RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, LinuxEnvironmentOperating Temperature: -30 to 70 ? (-22 to 158 ?) • Storage Temperature: -40 to 70 ? (-40 to 158 ?) • Operating Humidity: 10 to 90% RH non-condensing • Storage Humidity: 5 to 90% RH non-condensingPesoMain Unit: 1.33 kg
HARDWARE FEATURES
Interfaz1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45)ButtonResetAlimentación802.3at PoEMax. Power Consumption18.4W (for PoE+)Dimensiones8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm)Antenna2.4 GHz: 2 × 4.5 dBi, external omnidirectional antennas 2 × 8.3 dBi, internal directional antennas (antenna beamwidth 90°) • 5 GHz: 2 × 5.3 dBi, external omnidirectional antennas 2 × 13.2 dBi, internal directional antennas (antenna beamwidth 45°) Note: The gains above are the single-antenna peak gains.BluetoothBLE 5.2Weatherproof EnclosureIP66MountingPole/Wall Mounting (Kits included)
Características
4-Stream Outdoor Wi-Fi 7†Advanced FeaturesΔSwitching antenna modes via an Omada Controller requires version 6.1 or above.
