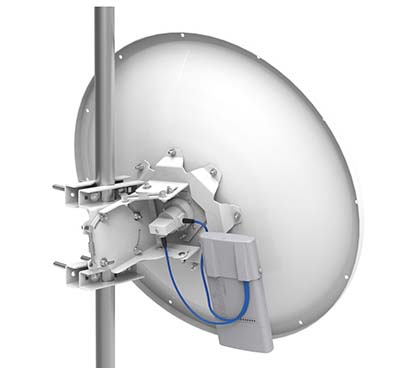

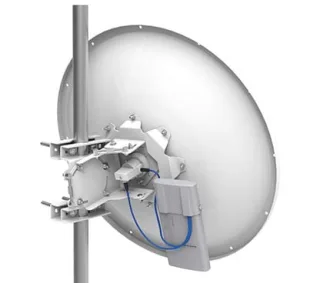

Mikrotik (MANT30 PA) MTAD-5G-30D3-PA Plato de antena 30dBi 5Ghz con soporte de precisión

Nota: El dispositivo wireless Basebox que aparece en la foto no está incluido
con la antena
--Familia mANT30
Is a professional class 5 GHz 30dBi dish antenna, built to the highest industry
standards. Built to seamlessly accomodate our Basebox series products (not
included), but can be used for any pole mounted wireless device due to the
adequate length of the included FlexGuide cable.
2 Versions:

-a standard type mount (MTAD-5G-30D3),

-with a precision alignment mount (MTAD-5G-30D3-PA).

The antennas come packaged with all necessary accessories and cables (2x
Flexguide 50 cm RP-SMA pin female to RP-SMA pin female cables included in
package, reference ACRPSMA)

--Especificaciones modelo MTAD-5G-30D3-PA
Product code
MTAD-5G-30D3-PA
Antenna gain DBI
30dbi
Frequency Range
4.7-5.875 GHz
Polarization
Vertical and Horizontal
Beamwidth
3 deg
VSWR
≤ 1.4 typ, ≤ 1.8 max
Port to Port Isolation
>40dB min
Front-to-Back Ratio
>30 dB
Cross Polarization
>40 dB
Power Rating
100W
Impedance
50 ohms
Elevation adjustment range
+/- 15 deg
Diameter x Depth
70 x 45cm (27.5 x 17.8in)
Weight
5.7kg (12.6 lbs)
Reflector
Aluminum
Outdoor Rating
ETSI EN 300 019-2-4
Standards
EN 302 326 DN1, DN2, DN3, DN5
Wind Survivability
201kph (125mph)
Wind Load (125 mph)
181.4kg (400 lbs)
Operating Temperature
-50°C to 80°C(-49°F to 158°F)
Pole Mount Diameter Range
3 to 10cm (1.2 to 3.9in)
Connector
2x RP-SMA (outside thread, pin
male)
Packaged size
73x73x20cm (29x29x8in)
