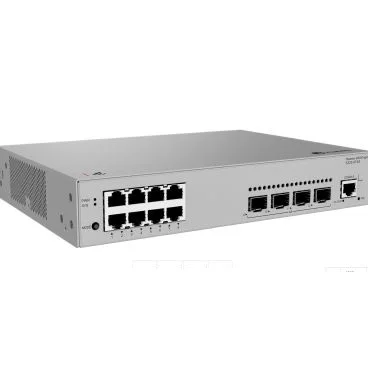

Huawei S220-8T4S Switch gestionable capa 2 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS 8xBASE-T 10/100/1000 4xGE SFP

Huawei eKit Datacom S220-8T4S Switch gestionable capa 2 con 8 puertos BASE-T de 10/100/1000 Mbps y 4 puertos GE SFP para redes de oficina y hogar. 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS Forwarding Capacity 18 Mpps Switching Capacity 24 Gbps Chassis material Metal Los switches de la serie eKitEngine S220 de Huawei son equipos de nivel 2 ideales para el mercado de pequeñas oficinas, oficinas domésticas y pequeñas empresas. Ofrecen múltiples funciones de gestión como la basada en web, CLI y aplicaciones, además de red Ethernet flexible y un control de seguridad diversificado para garantizar la estabilidad de tu red. Este dispositivo cuenta con un módulo de alimentación de CA integrado y un ventilador para la refrigeración por aire. Dispone de 2 GB de memoria y 1 GB de memoria flash, con una disponibilidad superior a 0.99999. Su diseño compacto de 1 U y su consumo eficiente lo convierten en una solución robusta y fiable para entornos exigentes. Especificaciones técnicas Alimentación Typical power consumption [W] 15.95 W Consumo máximo 21.52 W Static power consumption [W] 10.52 W Number of power slots 0 Redundant power supply No compatible Modo de alimentación AC built-in Tensión de entrada AC input: 100–240 V AC 50/60 Hz Rango de tensión de entrada AC input: 90 V AC to 264 V AC 45 Hz to 65 Hz Maximum input current [A] 0.8 A Power supply surge protection [kV] Differential mode: ±6 kV common mode: ±6 kV PoE No compatible Condiciones de uso Noise at normal temperature (acoustic power) [dB(A)] 44.5 dB(A) Noise at normal temperature (acoustic pressure) [dB(A)] 32.5 dB(A) Temperatura de funcionamiento 5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.) Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.) Grado de protección IP20 Dimensiones y montaje Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.09 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) Chassis material Metal Weight without packaging [kg(lb)] 1.41 kg (3.11 lb) Weight with packaging [kg(lb)] 2.22 kg (4.89 lb) General S220-8T4S Switch eKitEngine gestionable capa 2+ 16K MAC entries 4K VLANs STP/RSTP/MSTP/ERPS 8xBASE-T 10/100/1000 4xGE SFP Forwarding Capacity 18 Mpps Switching Capacity 24 Gbps Item Specification Chassis height [U] 1 U Typical heat dissipation [BTU/hour] 54.42 BTU/hour Maximum heat dissipation [BTU/hour] 73.43 BTU/hour MTTR [hours] 2 hours Availability > 0.99999 Number of card slots 0 Number of fans modules 1 Packet forwarding rate To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. RTC No compatible RPS input No compatible Types of fans Integrado Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right MTBF 75.32 years Certificaciones EMC certification Safety certification Manufacturing certification Red y protocolos Console port RJ45 Eth Management port No compatible USB No compatible Service port surge protection [kV] Common mode: ±7 kV Almacenamiento Switching capacity To obtain data of this specification item, see the corresponding datasheet or contact the product sales personnel. Memory 2 GB Flash memory Physical space: 1 GB
