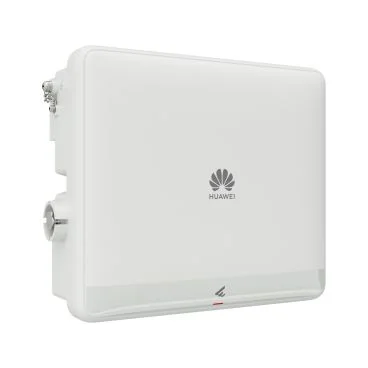

Huawei Ekit Datacom AP772 Punto De Acceso Inalámbrico Wi-fi 7 Exterior Ip68 / Mlo/ Omnidireccional / Ip68 / Puerto Sfp/sfp+

Huawei eKit Datacom AP772 Punto de acceso Wi-Fi 7 exterior omnidireccional con protección contra rayos y grado IP68 Wi-Fi 7 IP68 PoE MIMO 4x4 Beamforming Smart Antena El AP772 es una solución robusta diseñada para entornos exteriores exigentes, garantizando una cobertura superior en plazas, estadios y calles peatonales. Su tecnología Wi-Fi 7 y antenas omnidireccionales inteligentes aseguran una conexión estable y de alta velocidad para hasta 1.024 usuarios simultáneos, superando las limitaciones de las redes anteriores. Construido para durar, este equipo soporta temperaturas extremas entre -40°C y 70°C y cuenta con protección contra sobretensiones de 6 kA en sus puertos Ethernet. Gracias a su alimentación PoE y su diseño compacto de montaje en pared o poste, despliega una red segura y eficiente sin necesidad de cableado eléctrico adicional. Especificaciones técnicas Alimentación Consumo máximo 20.4 (excluding USB) Modo de alimentación PoE DC power adapter Tensión de entrada DC: 48 V PoE: 802.3bt/at/af Rango de tensión de entrada DC: 43.2 V to 57.6 V PoE: 802.3bt/at/af PoE de salida No compatible Maximum transmit power 2.4 GHz: 25 dBm/chain 28 dBm (combined power) 5 GHz: 24 dBm/chain 30 dBm (combined power) BLE: < 10 dBm 802.3bt power supply description The power supply mode is negotiated to 802.3bt, and no function is restricted. 802.3at power supply description When the power supply mode is negotiated to 802.3at and a 5 W USB module is used, the radio transmit power decreases by 3 dB. 802.3af power supply description When the power supply mode is negotiated to 802.3af, the radio mode is limited to 2.4 GHz (2x2), the 5 GHz radio is disabled, and the radio transmit power decreases by 3 dB. DC power supply description No function is limited. Inalámbrico Radio number 2 Operating frequency band 2.4GHz 5GHz Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax/be 5 GHz:802.11a/n/ac/ac Wave 2/ax/be Singal radio transmit power [dBm] 2.4 GHz: –10 dBm to 25 dBm/chain 5 GHz: –10 dBm to 24 dBm/chain Frequency stability [ppm] +/-20 Red y protocolos Console port Ninguno Service port surge protection PoE port: Surge: Differential mode: 1.5 kV (D.1), 10/700 us, 15 ohms + 25 ohms, criterion B Differential mode: 1.5 kV (D.2), 10/700 us, 15 ohms + 25 ohms, criterion C Common mode: 6 kV (C.3), 10/700 us, 15 ohms + 25 ohms/wire, criterion B: 6) Differential mode: 1 kV (D.1), 1.2/50 us, 42 ohms, criterion B Differential mode: 1 kV (D.2), 1.2/50 us, 42 ohms, criterion B Common mode: 2 kV (C.3), 1.2/50 us, 2 ohms + 40 ohms x n/wire, criterion B Inrush current: Differential mode: 250 A (D.2), 8/20 μs, criterion C Common mode: 6 kA/8-wire, 8/20 us, criterion C USB USB 2.0, power supply: 2.5 W/5 W Radio interface Built-in omnidirectional antennas General Item Specification Maximum heat dissipation [BTU/hour] 69.61 BTU/hour Maximum number of physical ports on the entire device 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing 10GE optical (SFP+), GE/2.5GE/10GE auto-sensing Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground Grounding Wind resistance 67 m/s IoT slot No compatible BLE No compatible MTTR [hour] 2 hour Almacenamiento NAND Flash 512 MB MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 4x4 Antenna gain 2.4 GHz: 5 dBi/chain (peak value) 3 dBi (combined gain) 5 GHz: 5 dBi/chain (peak value) 3 dBi (combined gain) BLE: 5 dBi MTBF 131.1375659 year Dimensiones y montaje Installation Type Wall Pole Dimensions without packaging (H x W x D) [mm(in.)] 92 mm x 250 mm x 220 mm (3.62 in. x 9.84 in. x 8.66 in.) Dimensions with packaging (H x W x D) [mm(in.)] 185 mm x 555 mm x 370 mm (7.28 in. x 21.85 in. x 14.57 in.) Weight without packaging [kg(lb)] 2.89 kg (6.37 lb) Weight with packaging [kg(lb)] 5.42 kg (11.95 lb) Condiciones de uso Temperatura de funcionamiento –40°C to +70°C (–40°F to +158°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Temperatura de almacenamiento –40°C to +85°C (–40°F to +185°F) Long-term operating relative humidity [RH] Operating humidity: 0% RH to 100% RH Storage humidity: 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) Grado de protección IP68
