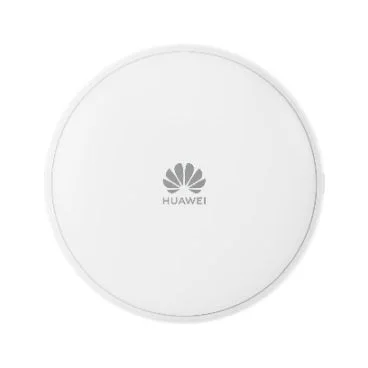

Huawei ekit datacom AP673 Punto de Acceso Wi-Fi 7 (802.11be) de interior

Huawei eKit Datacom AP673 Punto de Acceso Wi-Fi 7 (802.11be) de interior con tecnología MU-MIMO y hasta 13,66 Gbps de velocidad. Wi-Fi 7 802.11be MU-MIMO 2x2 MU-MIMO 4x4 PoE IN USB 3.0 Este punto de acceso de interior garantiza una conectividad inalámbrica de última generación gracias a sus bandas de 2,4, 5 y 6 GHz. Su diseño compacto y ligero facilita la instalación en paredes o techos, mientras que su potencia de transmisión ajustable asegura una cobertura robusta y estable en entornos de oficina o hogar. Dispone de una versatilidad de conexión sin precedentes con puertos Ethernet que soportan velocidades automáticas desde 10 Mbit/s hasta 5 Gbit/s. Además, cuenta con alimentación PoE integrada para una instalación sencilla sin necesidad de adaptadores externos, y un puerto USB para futuras ampliaciones, todo ello protegido contra sobretensiones en el puerto de alimentación. Especificaciones técnicas General Item Specification Maximum heat dissipation [BTU/hour] 66 BTU/hour Maximum number of physical ports on the entire device 5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3 Ground floating ground BLE BLE5.2 MTTR [hour] 2 hour Almacenamiento NAND Flash 512 MB MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4 Antenna gain 2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BT: 4 dBi MTBF 110.878 year Red y protocolos Console port Bluetooth console Service port surge protection PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B USB USB 3.0 is unavailable currently and will be supported through software upgrade in the future. Radio interface Built-in smart antennas 1x 100M/1000M/2.5G/5G Gigabit ethernet, con PoE IN 1x Gigabit ethernet Condiciones de uso Temperatura de funcionamiento –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) Temperatura de almacenamiento –40°C to +70°C (–40°F to +158°F) Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing) Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft) Alimentación Consumo máximo 21.1 W (excluding USB) Modo de alimentación PoE DC power adapter Tensión de entrada 12 V Rango de tensión de entrada DC: 12 V ± 10% PoE: 802.3at/af Maximum transmit power 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm 802.3bt power supply description The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted. 802.3at power supply description The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted. 802.3af power supply description The power supply mode is negotiated to 802.3af. Wi-Fi service: A maximum of 2.4 GHz (2x2) + 5 GHz (2x2) is supported. The USB is unavailable. Other functions are not restricted. DC power supply description No function is limited. Inalámbrico Radio number 3 Operating frequency band 2.4GHz 5GHz 6GHz Wi-Fi standard 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/n/ac/ac Wave 2/ax/be Singal radio transmit power [dBm] 2.4 GHz: –10 dBm to +20 dBm/chain 5 GHz: –10 dBm to +20 dBm/chain 6 GHz: –10 dBm to +20 dBm/chain Frequency stability [ppm] +/-20 Dimensiones y montaje Installation Type Wall Ceiling T-Rail Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.) Dimensions with packaging (H x W x D) [mm(in.)] 72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.) Weight without packaging [kg(lb)] 0.745 kg (1.64 lb) Weight with packaging [kg(lb)] 1.230 kg (2.71 lb)
