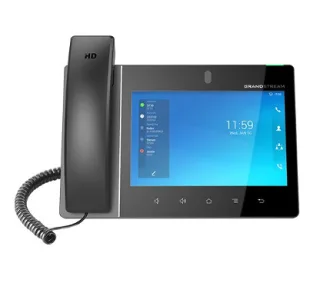

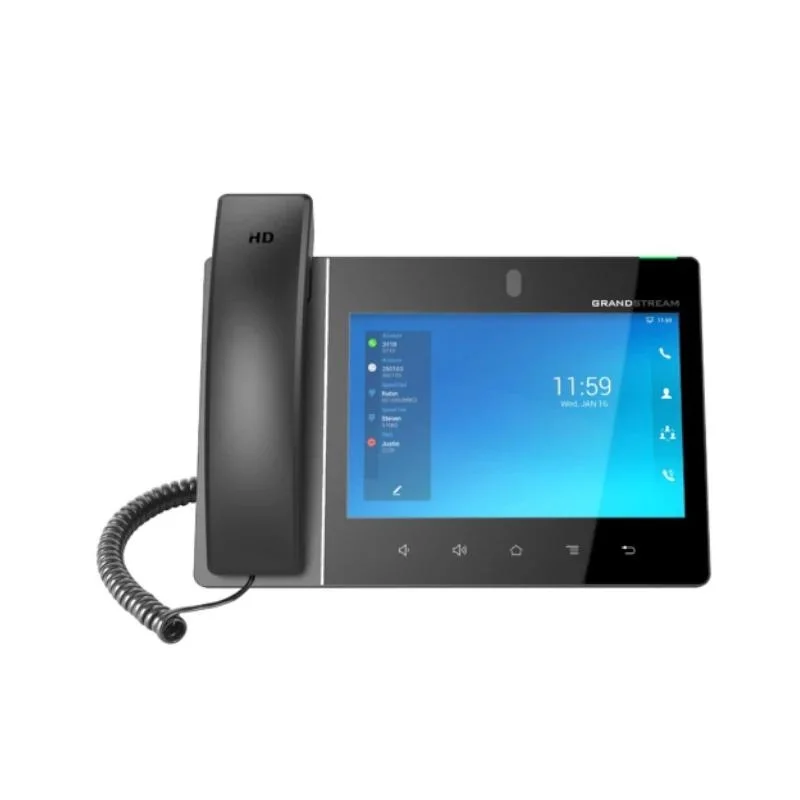

Grandstream GXV3480 Videotelefono IP de 16 líneas - 2 puertos giga con PoE - Bluetooth - WiFi - Pantalla táctil de 8 pulgadas - C

GXV3480
Videoteléfono android

El GXV3480 es un poderoso videoteléfono inteligente de gama alta Android, que combina un teléfono IP de 16 líneas con una solución de colaboración de video multiplataforma y la funcionalidad de una tableta Android para ofrecer una solución de comunicación todo en uno.
Es el dispositivo de escritorio ideal para profesionales y ejecutivos ocupados y también ofrece un dispositivo potente pero rentable para cualquier sala
de conferencias.

-16 líneas con hasta 16 cuentas SIP
-Cámara integrada de 2 megapíxeles para videollamadas con obturador de privacidad
-Funciona con el sistema operativo Android 11
-Bluetooth 5.0 incorporado para sincronizar con dispositivos móviles y conectar auriculares Bluetooth
-Puertos de red de 10/100/1000 Mbps con detección automática y doble conmutación
-Wi-Fi 6 de doble banda integrado (2,4 GHz y 5 GHz)
-PoE/PoE+ integrado para conexiones de alimentación y red
-Altavoz HD de micrófono dual con protección contra el ruido 2.0, cancelación de eco avanzada y excelente rendimiento de doble conversación
-Procesador ARMCortex-A55 de cuatro núcleos a 2,0 GHz con 4 GB de RAM y 16 GB eMMC Flash
-8 pulgadas (1280x800) pantalla táctil capacitiva de 10 puntos IPS LCD
-Los periféricos incluyen entrada/salida HDMI, USB tipo C, conector para auriculares de 3,5 mm, EHS (auriculares Plantronics)
-Conferencia de audio HD de 12 vías y capacidad de video HD de 1080p 30 fps de 3 vías

Protocols/Standards
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR),DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6,
OpenVPN®

Network Interfaces
Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+

Graphic
Display 8.0 inch 1280×800 capacitive touch screen (10 points) IPS LCD

Camera
Tiltable 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps

Bluetooth
Yes, integrated Bluetooth 5.0

Wi-Fi
Yes, dual-band (2.4GHz & 5GHz) with 802.11 a/b/g/n/ac/ax, 2T2R, Wi-Fi Display & AirPlay

Auxiliary Ports
RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB 3.0 port, Type-C, HDMI-out, HDMI-in

Feature Keys
2 function touch keys VOLUME+/-, 3 dedicated Android touch keys HOME, MENU and BACK

Voice Codecs and Capabilities
Wide-band Opus, wide-band G.722, G.711μ/a, G.729A/B, G.726-32, iLBC, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0

Video Codecs and Capabilities
H.264 BP/MP/HP, video resolution up to 1080p, frame rate up to 30 fps, bit rate up to 4Mbps, 3-way video conference (1080p@30fps), BFCP, people video(up to 1080p@30fps) + content
video(up to 1080p@15fps), anti-flickering, and auto exposure

Telephony Features
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 12-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to 2000 items), call record(local and server), call log (up to 2000 records), call waiting, auto answer, XML customization of screen, flexible dial plan, personalized music ringtones and music on hold, server redundancy & fail-over

Sample Applications
• Local apps: Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock,Voicemail, Calculator, Recorder, GS Market, etc.
• Support third-party Android apps
• API/SDK available for advanced custom application development

Applications Deployment
Supports Android 11 compliant applications to be developed, downloaded and run on the device with provisioning control

Android
Runs Android 11

HD Audio
Yes, 2 omni-directional microphones, HD handset and speakerphone with support for wideband audio

Base Stand
Integrated stand with multiple adjustable angles

QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security
User and administrator level passwords, random default admin password, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support, anti-hacking secure boot

Multi-language
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean,Japanese, and more

Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file, GDMS

Power & Green Energy Efficiency
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A (18W)
Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
*Must use PSU or PoE+ to power up the phone when using USB devices

Temperature and Humidity

Operation: 0°C to 40°C, Storage: -10°C to 60°C,
Humidity: 10% to 90% Non-condensing

Package Content
GXV3480 phone, handset with cord, base stand, universal power supply, network cable, screen cleaning cloth, quick installation guide

Compliance
FCC: CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15 Subpart E; Part 68(HAC)
IC: RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03.
CE: EN 55032 Class B;EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328;
ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA:BS EN 55032 Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC 62368-1; ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311
RCM: AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268.
HDMI
RoHS 2.0
