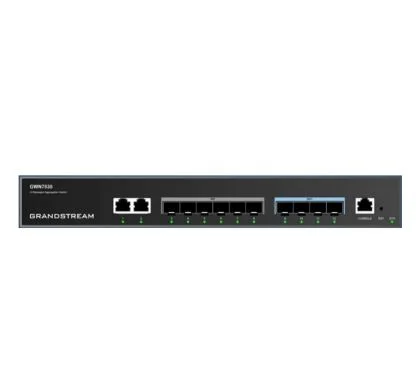

Grandstream GWN7830 Switch gestionable capa (layer) 3. Puertos: 6x SFP, 4x SFP+, 2x GbE
Base imponible 170,20 € + 21 % de IVA
Descripción
GWN7830
4x 10G SFP+
6x 1G SFP
2x Gigabit
El GWN7830 es un conmutador gestionado de agregación de capa 3 que permite a las medianas y grandes empresas crear redes empresariales escalables, seguras, de alto rendimiento e inteligentes que son totalmente gestionables. Proporciona 2 puertos Ethernet 10/100/1 000 Mbps, 6 puertos SFP y 4 puertos SFP+ con una capacidad de conmutación máxima de 96 Gbps. Admite VLAN avanzadas para una segmentación del tráfico flexible y sofisticada, QoS avanzada para priorizar el tráfico de red, IGMP/MLD Snooping para optimizar el rendimiento de la red y funciones de seguridad completas contra posibles ataques. GWN7830 se puede gestionar de varias formas, incluida la interfaz de usuario Web local del conmutador GWN7830 y CLI, la interfaz de línea de comandos. Y también es compatible con GWN.Cloud y GWN Manager, la plataforma de gestión de red local y en la nube de Grandstream. Con una calidad de servicio completa de extremo a extremo y una configuración de seguridad flexible, el GWN7830 es el conmutador gestionado de nivel empresarial con la mejor relación calidad-precio para medianas y grandes empresas.
- Support 4-port 10G SFP+, 6-port Gigabit SFP, 2-port Gigabit.
- Switching Capacity: 96Gbps.
- Forwarding Rate: 71.424Mpps.
- Packet Buffer: 12Mb.
- 16K MAC addresses, including static, dynamic and filtering MAC address.
- Dimensions (L x W x H): 330 x 175 x 44 mm.
- Weight: 2.7kg.
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Gigabit Ethernet Ports | 2 |
| Gigabit SFP Ports | 6 |
| 10Gigabit SFP+ Ports | 4 |
| Console | 1 |
| Integrated Power Supply | 30W |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 48Gbps |
| Switching Capability | 96Gbps |
| Forwarding Rate | 71.424Mpps |
| Packet Buffer | 12MB |
| Switching | - 16K MAC addresses, including static, dynamic and filtering MAC address - 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN - VLAN virtual interface - GVRP - 6 link aggregation - Spanning tree, 32 instances for STP/RSTP/MSTP |
| Routing | - Static routing - Dynamic routing, including RIP, RIPng, OSPF and OSPFv3 - Policy routing |
| Multicast | - IGMP Snooping with IGMPv2 and IGMPv3 - MLD Snooping with MLDv1 and MLDv2 - MVR |
| QoS/ACL | - Port priority - Priority mapping - Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ - Traffic shaping - Rate limit - 2K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | DHCP server, DHCP relay, Option 82, 60, 160 and 43 |
| Maintenance | CPU and memory monitoring, fault detection and alarm for power supply and fan, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | - User hierarchical management and password protection, HTTPS, SSH, Telnet - 802.1X authentication - AAA authentication including RADIUS, TACACS+ - Storm control - Port isolation, port security, sticky MAC - Filtering MAC address - IP source guard, DoS attack prevention, ARP inspection - DHCP Snooping - Loop protection including BPDU protection, root protection and loopback protection - Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop, Wall-Mount or Rack-Mount(rack-mounting kits included) |
| Data Transferring LEDs | 12x green-color LEDs |
| Environmental | Operation: 0°C to 45°C, humidity 10% to 90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 10% to 90% RH(Non-condensing) |
| Dimensions (L x W x H) | 330 x 175 x 44 mm |
| Unit Weight(TBD) | 2.7kg |
| Compliance | FCC, CE, RCM, IC, UKCA, UL |
