Gigabyte Placa Base B850M D3HP mATX AM5

Name: Gigabyte Placa Base B850M D3HP mATX AM5
Brand: Gigabyte
SKU: B850M D3HP
Price: 139.42 EUR
Availability: OutOfStock

Fabricante Gigabyte

139,42 €

Base imponible 115,22 € + 21 % de IVA

SKUB850M D3HP

Envíos a toda EspañaEntrega según disponibilidad

Pago seguroTarjeta mediante Redsys

IVA incluidoPrecio final con impuestos

Características

Información relevante para placas base

CPU compatible: AMD
Socket: AM5
Chipset: B850
Formato: Micro-ATX
Tipo de RAM: DDR5
Slots de memoria: 4
Memoria máxima: 256 GB
Velocidad de red: 1 Gbps
Slots M.2: 3
Puertos SATA: 4
PCI Express máximo: PCIe 5.0
Slots PCIe x16: 1
HDMI: Sí
DisplayPort: Sí
USB-C: Sí

Ver 1 características técnicas adicionales

Memoria RAM: 256 GB

Descripción

Marca	Gigabyte
Modelo	B850M D3HP
Plataforma	- Micro ATX Form Factor; 24.4cm x 24.4cm
Chipset	- AMD B850
CPU Soportados	- AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors AMD Ryzen™ 8000 Series Processors AMD Ryzen™ 7000 Series Processors
Memoria	- Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules - 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Slots Expansión	- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode - Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Gráficos	- Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version.

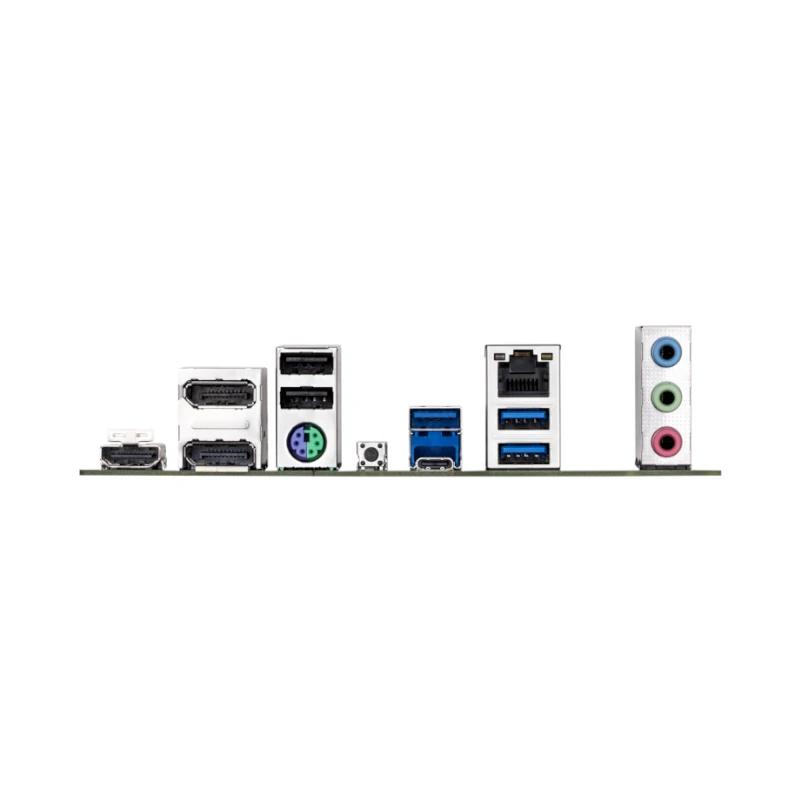

Puertos E/S, Conectores	Conectores Internos - 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x CPU fan header - 1 x CPU fan/water cooling pump header - 1 x system fan header - 1 x system fan/water cooling pump header - 2 x addressable RGB Gen2 LED strip headers - 1 x RGB LED strip header - 2 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB Type-C® header, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) - 1 x reset jumper - 1 x Clear CMOS jumper Panel Trasero - 1 x HDMI port (Note) - 2 x DisplayPorts (Note) - 1 x PS/2 keyboard/mouse port - 1 x Q-Flash Plus button - 1 x USB Type-C® port, with USB 3.2 Gen 1 support - 3 x USB 3.2 Gen 1 ports - 2 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks
Otras Características	Almacenamiento - 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs - 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs - 4 x SATA 6Gb/s connectors - RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. - RAID 0, RAID 1, and RAID 10 support for SATA storage devices USB - CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 port on the back panel 1 x USB 2.0/1.1 port on the back panel - Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) Audio - Realtek® Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel LAN - Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Fecha Revisión	13-06-2025 por DR
