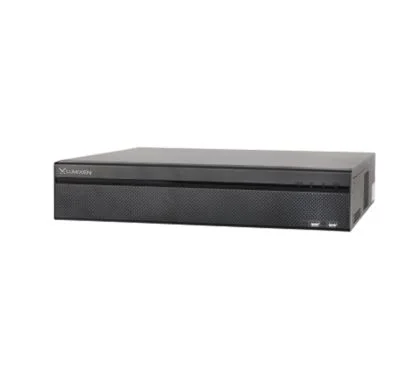

Dahua DHI-NVR5816-4KS2(V2.0)
Grabadora de video de red industrial con soporte para 16 cámaras, decodificación 1080p y hasta 8 discos duros SATA.
Procesador industrialSistema Linux embebido320 Mbps de ancho de banda8 puertos SATA IIIHDMI y VGA dualesDetección facialReconocimiento de matrículasAlmacenamiento local
Este grabador de video de red Dahua está diseñado para entornos exigentes con un procesador industrial robusto y un sistema operativo Linux embebido. Soporta hasta 16 canales de entrada con decodificación de 1080p a 30 fps, permitiendo una gestión eficiente de múltiples flujos de video simultáneos sin comprometer el rendimiento del sistema.
Destaca por sus capacidades avanzadas de inteligencia artificial, incluyendo detección facial, reconocimiento de matrículas y análisis de vídeo para protección perimetral. Cuenta con dos puertos de salida HDMI y VGA para visualización multi-pantalla, además de soporte para hasta 8 discos duros de gran capacidad para garantizar la seguridad y continuidad de tus datos.
Especificaciones técnicas
Red y protocolos
Operation InterfaceWeb; local GUINetwork Bandwidth320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwardingProtocolos de redHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2PInteroperabilidadONVIF (profile T/S/G); CGI; SDKNavegadorChrome; IE9 or later; FirefoxUSB2 front USB 2.0 ports, 2 rear USB 3.0 portsNetwork2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports
Detección y alarmas
Alarmas generalesMotion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarmAnomaly AlarmCamera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomalyIntelligent AlarmPerimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution; heat mapAcciones ante alarmaRecord; snapshot; IPC external alarm output; buzzer; log; preset; emailEntrada de alarma16 channelsSalida de alarma6 channels
Vídeo y audio
Salida de vídeoHDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720 VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720 HDMI2/VGA2: 1920 × 1080 VGA1/HMDI1 homologous output, VGA2/HDMI2 homologous output, and VGA1/HDMI1 and VGA2/HDMI2 supports heterogeneous outputVideoSmart H.265+; Smart H.264+; H.265; H.264; MJPEGAudioPCM; G.711A; G.711U; G.726Entrada de audio1 channel, RCA connectorSalida de audio2 channels, RCA connector, which supports voice intercom output
Condiciones de uso
Temperatura de funcionamiento–10°C to +55°C (+14°F to +131°F)Temperatura de almacenamiento0°C to +40°C (+32°F to +104°F)Humedad de funcionamiento10%–93% (RH)Humedad de almacenamiento30%–85% (RH)Operating Altitude3,000 m (9,843 ft)
Dimensiones y montaje
Peso neto6.55 kg (14.4 lb) (without HDD)Peso bruto9.5 kg (20.94 lb) (without HDD)Dimensiones440.0 mm × 452.5 mm × 94.9 mm (17.3" × 17.8" × 3.7")Package Dimensions563 mm × 563 mm × 215 mm (22.2" × 22.2" × 8.5")
Sistema
Main ProcessorIndustrial embedded micro-processorSistema operativoEmbedded Linux
General
Performance16/20/20 channelsAI SearchSearch for pictures by channel, time and event typePerformance14 channelsFace Attributes6 attributes: Gender; age; glasses; expression; mouth mask; beardAI SearchSearch for pictures by channel, time and face attributesPerformance16/32/64 channelsAI SearchSearch by target classification (human, vehicle)Performance16 channelsHuman BodyTop; top color; bottom; bottom color; hat; bag; gender; age; umbrellaVehiclePlate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; regionNon-motor VehicleType; color; number of passengers; helmetAI SearchSupports searching for target video by metadataPerformance4 channelsAI SearchSearch by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection)Access Channel16/32/64Decoding Capability16-channel@1080P (30 fps)Third Party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and moreMobile Phone AccessAndroid; iOSMulti-channel Playback1/4/9/16Record ModeManual; schedule (general; MD; alarm; MD & alarm; intelligent; POS)BackupUSB devicePlayback Function1. Play; pause; stop; fast forward; fast backward; rewind; play by frame 2. Full screen; backup (cut/file) ; partially enlarge; audio on/offDisk GroupSíHDD8 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature.eSATA1 eSATARS-2321 channel, used to debug and pass through serial dataRS-4851 channel, used to control PTZ, and it supports multiple protocolsHDMI2VGA22nd screen1/4/8/9/16Resolución12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and moreMulti-screen Display1st Screen: 16-channel: 1/4/8/9/16 32-channel: 1/4/8/9/16/25/36 64-channel: 1/4/8/9/16/25/36/64Storage MethodLocal HDD and networkCertificationsCE: EN55032; EN55024; EN50130-4; EN60950-1 FCC: Part 15 Subpart B; ANSI C63.4-2014 UL: UL 60950-1
Alimentación
AlimentaciónSingle, 100V–240V AC, 50 Hz–60 HzConsumo< 16.7W (without HDD)
