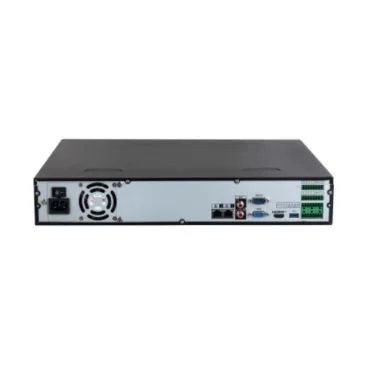

Dahua DHI-NVR4432-EI
Grabador IP de sobremesa con 32 canales, procesador industrial y capacidades avanzadas de Inteligencia Artificial para videovigilancia inteligente.
32 canalesH.265+Detección facialReconocimiento facialProtección perimetralSMD PlusANPR16TB
Este grabador IP de sobremesa Dahua integra un procesador industrial de grado industrial para un funcionamiento robusto y estable. Su sistema operativo embebido Linux permite gestionar hasta 32 cámaras con una capacidad de decodificación superior, asegurando un rendimiento óptimo incluso en entornos exigentes de seguridad.
Gracias a sus potentes algoritmos de Inteligencia Artificial, el dispositivo realiza detección y reconocimiento facial, protección perimetral y análisis de matrículas (ANPR) directamente en el servidor. La compresión H.265+ optimiza el almacenamiento, mientras que las salidas HDMI y VGA permiten visualizar múltiples pantallas simultáneamente con alta definición.
Especificaciones técnicas
Características
Main ProcessorIndustrial-grade processorSistema operativoEmbedded LinuxOperating InterfaceWeb, Local GUIAI by RecorderFace detection, face recognition, perimeter protection, and SMD Plus;AI by CameraFace detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat mapPerimeter Performance AI by Recorder (Number of Channels)2 channels, 10 IVS rules for each channelPerimeter Performance of AI by Camera (Number of Channels)All channels (8 targets/s)Face AttributesGender; age group; glasses; expressions; face mask; beardFace Database CapacityUp to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.SMD Plus by Recorder4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by CameraAll channels (16 targets/s)ANPR by Camera (Number of Channels)All channels (4 targets/s)License Plate Database Capacity1. Create up to 20,000 plate numbers. 2. Blocklist and allowlistAccess Channel32 channelsNetwork BandwidthAI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoingResolución16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIFDecoding CapabilityAI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps; 32-channel 720p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fps; 32-channel D1p@30 fpsSalida de vídeo1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.Multi-screen Display1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16Third-party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, CanonCompresión de vídeoSmart H.265+; H.265; Smart H.264+; H.264; MJPEGCompresión de audioG.711a; G.711u; PCM; G726Protocolos de redHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto registerMobile Phone AccessiOS; AndroidInteroperabilidadONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE9 and later; FirefoxMulti-channel PlaybackUp to 16 channelsRecord ModeGeneral, motion detection; intelligent; alarmBackup MethodUSB device and networkPlayback ModeInstant playback, general playback, event playback, tag playback, smart playbackDisk GroupSíAlarmas generalesMotion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarmAnomaly AlarmCamera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exceptionIntelligent AlarmFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapAcciones ante alarmaRecord; snapshot; IPC external alarm output; audio; buzzer; log; preset; emailEntrada de audio1-channel RCASalida de audio1-channel RCAEntrada de alarma16 channelsSalida de alarma4 channelsDisk Interface4 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.RS-2321RS-4851USB2 (1 front USB 2.0 port, 1 rear USB 3.0 port)HDMI1VGA1Puerto de red2 (10/100/1000 Mbps Ethernet port, RJ-45)> Max. decoding capability16 × 1080p@30 fps. Supports adaptive decodingCompresión vídeoSmart H.265+, H.265, Smart H.264+, H.264, MJPEGDivisión de salida de la pantalla principal1, 4, 8, 9, 16, 25, 36División de salida de la pantalla secundaria1, 4, 8, 9, 16Compresión audioPCM, G.711a, G.711u, G726Resolución de grabación16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIFAncho de banda con IA deshabilitada256 Mbps entrantes, 256 Mbps de grabación, 256 Mbps salientesAncho de banda con IA habilitada180 Mbps entrantes, 180 Mbps de grabación, 180 Mbps salientesAlimentación100V ~ 240V CA, 50/60HzConsumo≤10W (sin contar discos)
General
Alimentación100–240 VAC, 50-60HzConsumo<10 W(without HDD)Peso neto4.25 kg (10.63 lb)Peso bruto6.35 kg (14.00 lb)Dimensiones440.0 mm × 415.6 mm x 76.0 mm (17.32" × 16.36" × 2.99") (W × D × H)Packaging Dimensions529.0 mm × 499.0 mm x 211.0 mm (20.83" × 19.65" × 8.31") (W × D × H)Temperatura de funcionamiento–10 °C to +55 °C (14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–93% (RH), non-condensingInstalaciónRack or desktopCertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Temperatura de funcionamiento de -10°C ~ +55°C
Dimensiones440 (An) x 76 (Al) x 415,6 mmPeso neto4,25 kgPeso bruto6,35 kg
