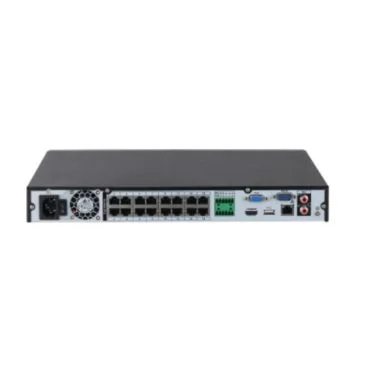

Dahua DHI-NVR4216-16P-EI
Grabador IP de sobremesa de 16 canales con alimentación PoE, procesador industrial y capacidades avanzadas de Inteligencia Artificial para reconocimiento facial y protección perimetral.
16 canales PoESmart H.265+Reconocimiento facialProtección perimetralAncho de banda 256 Mbps2 puertos SATASistema LinuxSoporte 16TB
Este grabador de sobremesa Dahua combina un procesador industrial robusto con un sistema operativo Linux embebido para garantizar un funcionamiento estable en entornos exigentes. Dispone de 16 puertos PoE para conectar cámaras directamente y ofrece un ancho de banda de entrada y salida de hasta 256 Mbps, asegurando una transmisión de datos fluida y eficiente para la gestión de múltiples flujos de video de alta resolución.
Gracias a sus potentes capacidades de Inteligencia Artificial, el dispositivo detecta rostros, reconoce identidades y protege perímetros en tiempo real. Cuenta con dos puertos SATA para instalar discos duros de hasta 16 TB por unidad y soporta compresión Smart H.265+ para optimizar el almacenamiento. Además, permite la integración de cámaras de terceros y ofrece múltiples opciones de visualización en pantalla para un control total de su sistema de videovigilancia.
Especificaciones técnicas
Red y protocolos
Operating InterfaceWeb, Local GUINetwork BandwidthAI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoingProtocolos de redHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto registerInteroperabilidadONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE9 and later; FirefoxDisk Interface2 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)Puerto de red1 (10/100/1000 Mbps Ethernet port, RJ-45)PoE Port16 ports, 10/100 Mbps, IEEE 802.3 af/at
Detección y alarmas
Alarmas generalesMotion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarmAnomaly AlarmCamera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exceptionIntelligent AlarmFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapAcciones ante alarmaRecord; snapshot; IPC external alarm output; audio; buzzer; log; preset; emailEntrada de alarma4 channelsSalida de alarma2 channels
Vídeo y audio
Salida de vídeo1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.Compresión de vídeoSmart H.265+; H.265; Smart H.264+; H.264; MJPEGCompresión de audioG.711a; G.711u; PCM; G726Entrada de audio1-channel RCASalida de audio1-channel RCA
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–93% (RH), non-condensing
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación100–240 VAC, 47-63 HzConsumoTotal output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of asingle port is 25.5W
General
AI by RecorderFace detection, face recognition, perimeter protection, and SMD Plus;AI by CameraFace detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat mapPerimeter Performance AI by Recorder (Number of Channels)2 channels, 10 IVS rules for each channelPerimeter Performance of AI by Camera (Number of Channels)All channels (8 targets/s)Face AttributesGender; age group; glasses; expressions; face mask; beardSMD Plus by Recorder4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by CameraAll channels (16 targets/s)Access Channel16 channelsDecoding CapabilityAI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 4-channel 6 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps; 16-channel 720p@30 fpsThird-party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, CanonMobile Phone AccessiOS; AndroidMulti-channel PlaybackUp to 16 channelsRecord ModeGeneral, motion detection; intelligent; alarmBackup MethodUSB device and networkPlayback ModeInstant playback, general playback, event playback, tag playback, smart playbackDisk GroupSíRS-2321HDMI1VGA1> Max. decoding capability16 × 1080p@30 fps. Supports adaptive decodingFace Database CapacityUp to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.Resolución16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIFMulti-screen Display1st Screen: 1/4/8/9/16 2nd Screen: 1/4/8/9/16CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Dimensiones y montaje
Peso neto2.60 kg (5.73 lb)Peso bruto3.80 kg (8.38 lb)Dimensiones375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" × 2.09") (W × L × H)Packaging Dimensions451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" × 5.79") (W × L × H)InstalaciónRack or desktop
