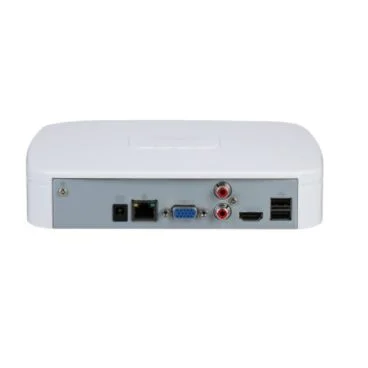

Dahua DHI-NVR4116-EI
Grabadora de red industrial de 16 canales con procesador de grado industrial y sistema operativo Linux para entornos exigentes.
Procesador industrialSistema LinuxDetección facialReconocimiento facialProtección perimetralSMD PlusHasta 16 TB16 canales
Esta grabadora de red Dahua está diseñada para operar en condiciones industriales con un procesador de grado industrial y un sistema operativo Linux robusto. Soporta hasta 16 canales de acceso, decodificación de hasta 16 cámaras en 1080p y ofrece una interfaz web y local para una gestión sencilla y eficiente de todos los dispositivos conectados en su red de seguridad.
Destaca por sus potentes capacidades de inteligencia artificial integradas, permitiendo detección y reconocimiento facial, protección perimetral y análisis de multitudes. Cuenta con tecnología SMD Plus para reducir falsas alarmas y admite múltiples bases de datos faciales, facilitando el control de accesos y la seguridad perimetral en instalaciones críticas que requieren fiabilidad y rendimiento superior.
Especificaciones técnicas
General
AI by RecorderFace detection, face recognition, perimeter protection, and SMD PlusAI by CameraFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapPerimeter Performance AI by Recorder (Number of Channels)2 channels, 10 IVS rules for each channelPerimeter Performance of AI by Camera (Number of Channels)8 channelsFace AttributesGender; age group; glasses; expressions; face mask; beardSMD Plus by Recorder4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera8 channelsAccess Channel16 channelsDecoding CapabilityAI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fpsThird-party Camera AccessPanasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, CanonMobile Phone AccessiOS; AndroidMulti-channel PlaybackUp to 16 channelsRecord ModeGeneral, motion detection; intelligent; alarmBackup MethodUSB device and networkPlayback ModeInstant playback, general playback, event playback, tag playback, smart playbackHDMI1VGA1Face Database CapacityUp to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.Resolución16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIFMulti-screen Display1st Screen: 1/4/8/9/16 2nd Screen: 1/4/8/9/16CertificationsFCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Dimensiones y montaje
Peso neto0.45 kg (0.99 lb)Peso bruto1.07 kg (2.36 lb)Dimensiones204.6 mm × 206.4 mm × 45.6 mm (8.06" × 8.12" × 1.80") (W × L × H)Packaging Dimensions364 mm × 96 mm × 261 mm (14.33" × 3.78" × 10.26") (W × L × H)InstalaciónRack or desktop
Red y protocolos
Operating InterfaceWeb; Local GUINetwork BandwidthAI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoingProtocolos de redHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto registerInteroperabilidadONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE9 and later; FirefoxHDD Interface1 SATA port, up to 16 TB.The maximum HDD capacity varies with environment temperature.USB2 (2 rear USB 2.0 ports)Puerto de red1 (10/100/1000 Mbps Ethernet port, RJ-45)
Vídeo y audio
Salida de vídeo1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.Compresión de vídeoSmart H.265+; H.265; Smart H.264+; H.264; MJPEGCompresión de audioG.711a; G.711u; PCM; G726Entrada de audio1-channel RCASalida de audio1-channel RCA
Detección y alarmas
Alarmas generalesMotion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarmAnomaly AlarmCamera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exceptionIntelligent AlarmFace detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat mapAcciones ante alarmaRecord; snapshot; IPC external alarm output; audio; buzzer; log; preset; email
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–93% (RH)
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación12 VDC, 2 AConsumo<10 W(without HDD)
