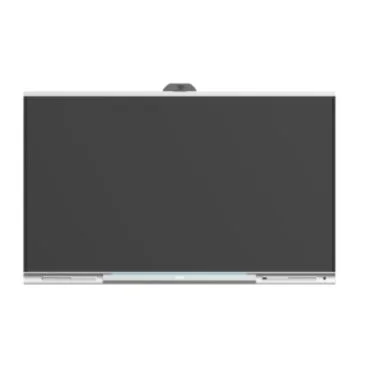

Dahua DHI-LPH75-MC470-P
Pizarra interactiva inteligente de 75 pulgadas con pantalla ultra HD y sistema Android 11.0
Android 11.08MP Cámara12 GB RAM3 altavoces8 matrices micrófonoSensor huella dactilar
Descubre la potencia de esta pizarra interactiva Dahua de 75 pulgadas, equipada con un panel DLED de resolución 4K que ofrece imágenes nítidas y colores vívidos. Su sistema operativo Android 11.0 permite una experiencia fluida y versátil, ideal para entornos educativos y corporativos que buscan modernizar sus aulas o salas de reuniones con tecnología de punta.
La comunicación visual y auditiva se ve potenciada por una cámara de 8MP y un micrófono de 8 matrices que captan el sonido desde hasta 8 metros, asegurando una calidad de audio excepcional. Además, cuenta con un sensor de huella dactilar para un acceso seguro y compartido, facilitando la colaboración entre múltiples usuarios sin complicaciones.
Especificaciones técnicas
Imagen y óptica
Resolución3840 (H) × 2160 (V)Pixel48 MPResolución máxima3840 × 2160@30 fpsÁngulo de visiónH: 87°; V: 49°; D: 99°Light Sensor1Touch Resolution32767 × 32767Fingerprint Resolution160 × 160Control automático de gananciaSíIntelligent Noise FilteringSí
Dimensiones y montaje
Panel Dimensions65-inch; 75-inch; 86-inch; 98-inchProduct MaterialMetal casingCasing Color (Frame/Rear)Bottom/top: Silver; left/right: blackDimensiones65-inch: 1,485 mm x 967.8 mm x 93.3 mm (58.46" × 38.10" × 3.67") 75-inch: 1,707.2 mm x 1,094.47 mm x 93.3 mm (67.21" × 43.09" × 3.67" ) 86-inch: 1,953.2 mm x 1,232.7 mm x 93.3 mm (76.90" × 48.53" × 3.67") 98-inch: 2,216.4 mm x 1,381.7 mm x 109.6 mm (87.26" × 54.40" × 4.31")Packaging Dimensionscarton: 65-inch: 1,587 mm x 1,055 mm x 260 mm (62.48" × 41.53" × 10.24") 75-inch: 1,810 mm × 1,150 mm × 260 mm (71.26" × 45.28" ×10.24") 86-inch: 2,055 mm × 1,325 mm × 260 mm (80.91" × 52.17" × 10.24") 98-inch: 2,337 mm × 1,470 mm × 255 mm (92.01" × 57.87" × 10.04") (92.13" × 40.94" × 6.10")Peso neto65-inch: 40 kg (88.18 lb) 75-inch: 54 kg (119.05 lb) 86-inch: 67 kg (147.71 lb) 98-inch: 91 kg (200.62 lb)Peso bruto65-inch: 50 kg (110.23 lb) 75-inch: 65 kg (143.30 lb) 86-inch: 80 kg (176.37 lb) 98-inch: 107 kg (235.89 lb)InstalaciónWall mount; mobile bracket
Vídeo y audio
Video Input1 × HDMI INSalida de vídeo1 × HDMI OUTSalida de audio1 × 3.5 mm (Line OUT) portBuilt-in Speaker3
Almacenamiento
Memoria RAM12 GB (System: 8 GB, Camera: 4 GB)Memoria ROM64 GBAlmacenamiento8 GB eMMCFingerprint Capacity100
Alimentación
AlimentaciónFull: 15 W × 3Alimentación100–240 VAC, 50/60 HzConsumo65-inch: 200 W; 75-inch: 300 W ; 86-inch: 400 W; 98-inch: 600 WStandby Power Consumption≤ 0.5 W
Sistema
Sistema operativoAndroid 11.0ProcesadorQuad-core A73 + Quad-core A53Operating System of External ModuleWindows 7/8/10;Android
Red y protocolos
Puerto de red1 × RJ-45USB3 × USB 3.0; 1 × Micro USBType-C Port1 × Type-C
General
GPUARM Mali-G52 MP8 (8EE)BacklightDLEDAspect Ratio16:9Brightness65-inch: 350 cd/m²; 75-inch: 350 cd/m²; 86-inch: 400 cd/m²; 98-inch : 400 cd/m²Viewing AngleH: 178°; V: 178°Lifespan50,000 hRefresh Rate60 HzStatic Contrast1200:1Auto ControlAuto flip; Auto white balanceDistortion–8.6%Front Button1 × power button (right side)Front Ports1 × USB 3.0 (left side)RS-2321 × RS-232Others1 × TouchIrDA1Microphone8 ArrayTouch Technology TypeInfrared touch technologyResponse Time< 10 msTouch PointsSupports 20 touch points and drawing up to 20 linesValid Touch2 mmtouch accuracy± 1 mmWriting ModeFinger + Pen (attaches magnetically)Anti-light InterferenceAnti-dazzle tempered glassSurface Hardness7 on the Mohs scaleNumber of Multi-user Writing Points10FAR0.001%Pick-up DistanceFar-field sound pickup: 6 m–8 m (19.69 ft–26.25 ft)Number of Microphones8Echo CancellationSíPolar PatternOmnidirectionalProtective GlassAnti-dazzle tempered glass with a hardness of 7 on the Mohs scaleHoles Distance65-inch: 500 mm× 400 mm (19.69''× 15.75'') 75-inch: 600 mm× 400 mm (23.62''× 15.75'') 86-inch: 800 mm× 400 mm (31.50''× 15.75'') 98-inch: 1000 mm× 400 mm (39.37''× 15.75'')Packing ListSmart interactive whiteboard × 1 Power cord × 3 Stylus pen × 2 Quick start guide × 1 Wall mount bracket (already installed on the whiteboard): × 1 Accessory package × 1 Remote control × 1Display Color72% NTSCFace DetectionSí
Inalámbrico
CPU Frequency2.2 GHz + 2.0 GHzWiFiDual-band 2.4 G/5 G; supports 802.11 a/b/g/n/ac wireless frequency rangeWi-Fi HotspotDual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same timeWi-Fi1 × Wi-Fi; 1 × HotspotFrequency150 Hz–20 kHz
Condiciones de uso
Temperatura de funcionamiento0 °C to +40 °C (+32 °F to +104 °F)Temperatura de almacenamiento–10 °C to +50 °C (+14 °F to +122 °F)Humedad de funcionamiento10%–90%Humedad de almacenamiento10%–90%
