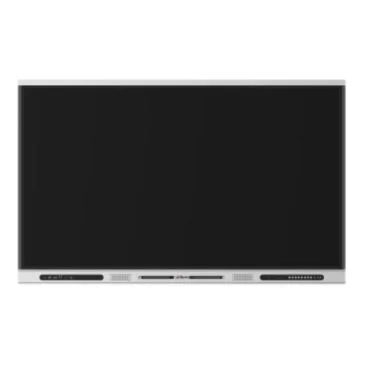

Dahua DHI-LPH65-ST470-B
Pizarra interactiva inteligente Dahua de 65 pulgadas con pantalla 4K y sistema Android 11.0
Pantalla 4KAndroid 118 GB RAMToque infrarrojos8 botones frontalesWi-Fi 5
Disfruta de una experiencia educativa y de presentación inmersiva con esta pizarra interactiva de 65 pulgadas. Su panel 4K D-LED ofrece colores vivos y una imagen nítida gracias a su tecnología Zero Air Gap, garantizando una visualización perfecta desde cualquier ángulo. Ideal para aulas y oficinas modernas.
La versatilidad de este dispositivo te permite operar con el sistema Android 11 o instalar Windows mediante el módulo OPS opcional. Conecta tus dispositivos inalámbricamente para compartir pantallas fácilmente y gestiona todo con sus 8 botones físicos frontales. Además, cuenta con dos altavoces integrados para una reproducción de audio clara durante tus sesiones.
Especificaciones técnicas
General
BacklightD-LEDAspect Ratio16:09Brightness400 cd/m²(typ.)Contrast1200Viewing Angle178°(H) / 178°(V)Lifespan50,000 hoursResponse Time8 ms(typ.)Refresh Rate60 HzFront Button8 buttons (power, home, menu, signal source, touch lock, curtain, volume, and annotation)Front PortsType C × 1 (4K@60 Hz, Touch) HDMI In × 1 (4K@60 Hz) USB 3.0 Type-B × 1 (Touch) USB 3.0 Type A × 2 Mic In × 1 (3.5 mm port)BluetoothBluetooth 5.2Touch Technology TypeInfrared touch technologyAttachment MethodZero Air GapResponse Time≤10 msTouch PointsAndroid: 32, Windows: 40Touch Accuracy± 1 mm (over 90% Area)Valid Touch2 mmTouch Height3 mmWriting ModeFinger + PenCommunication ModeUSBAnti-light InterferenceAnti-dazzle tempered glassSurface Hardness8HGlass4 mm Anti-dazzle tempered glassHoles Distance65-inch: 500 mm × 400 mm (19.69" × 15.75") 75-inch: 600 mm × 400 mm (23.62" × 15.75") 86-inch: 800 mm × 400 mm (31.50" × 15.75")Packing ListSmart interactive whiteboard × 1 Power cord × 1 Passive stylus pen × 2 HDMI cabel × 1 Quick start guide × 1 Wall mount bracket (already installed on the whiteboard) × 1 Accessory package × 1 Remote control × 1 Legal and Regulatory Information × 1Display Color1.07 B/10 bit (8 bit + FRC)Rear PortType C × 1 (4K@60 Hz, Touch) HDMI In × 2 (4K@60 Hz) VGA In × 1 (1080p@60 Hz) USB 3.0 Type-B × 3 (Touch) HDMI Out × 1 USB 3.0 Type A × 2 Micro USB × 1 RS-232 × 1 RJ45 In × 1 RJ45 Out × 1 Audio In × 1 (3.5 mm port, used to play sound with VGA) Audio Out × 1 (3.5 mm port) SPDIF Out × 1 (Optical port) OPS slot × 1Built-in Speaker2CertificationsCE, Engery Star, ROHS, REACH, WEEE
Sistema
Sistema operativoAndroid 11ProcesadorQuad-core A73 + Quad-core A53
Dimensiones y montaje
Panel Dimensions65 inch; 75 inch; 86 inchProduct MaterialMetalCasing Color (Frame/Rear)Bottom/top: Silver; left/right: black; back: blackDimensiones65-inch: 1,485.2 mm × 93.0 mm × 924.5 mm (58.47" × 3.66" × 36.40") 75-inch: 1,707.5 mm × 93.0 mm × 1,050.0 mm (67.22" × 3.66" × 41.34") 86-inch: 1,953.2 mm × 93.0 mm × 1,187.9 mm (76.90" × 3.66" × 46.77")Packaging Dimensions65-inch: 1,580.0 mm × 200.0 mm × 1030.0 mm (62.20" × 7.87" × 40.55") 75-inch: 1,800.0 mm × 200.0 mm × 1,165.0 mm (70.87" × 7.87" × 45.87") 86-inch: 2,050.0 mm × 200.0 mm × 1,310.0 mm (80.71" × 7.87" × 51.57")Peso neto65-inch: 40 kg (88.19 lb) 75-inch: 52 kg (114.64 lb) 86-inch: 68 kg (149.92 lb)Peso bruto65-inch: 50 kg (110.23 lb) 75-inch: 65 kg (143.30 lb) 86-inch: 82 kg (180.78 lb)InstalaciónWall mount; mobile bracket
Imagen y óptica
Resolución3840 × 2160Light SensorSíIR ReceiverSíTouch Resolution32767 × 32767
Alimentación
Alimentación2.0 sound channel, Front facing: 2 × 15 WAlimentación100–240 VAC, 50/60 HzConsumo65-inch: 120 W(typ.); 240 W(max.) 75-inch: 150 W(typ.); 300 W(max.) 86-inch: 250 W(typ.); 450 W(max.)Standby Power Consumption≤0.5 W
Condiciones de uso
Temperatura de funcionamiento0 °C to +40 °C (+32 °F to +104 °F)Temperatura de almacenamiento–10 °C to +50 °C (+14 °F to +122 °F)Humedad de funcionamiento10%–90% (RH)Humedad de almacenamiento10%–90% (RH)
Inalámbrico
Wi-FiWi-Fi 5, 2.4 GHz/5 GHz; Integrated WiFi 802.11 a/b/g/n/ac, supports PEAP/EAP-GTC authentication protocol within 802.lXWireless Access PointWIFI 5, 2.4 GHz/5 GHz; Supports enabling Hotspot and Wi-Fi at the same time
Almacenamiento
Memoria RAM8 GB (optional 4 GB)Memoria ROM32 GB (optional 64 GB)
