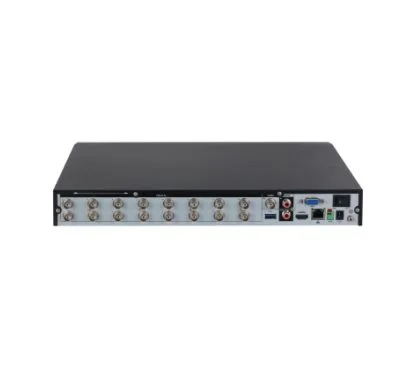

Dahua DH-XVR7216AN-4K-I3 16CH Penta-brid 4K 1U 2HDDs WizSense Digital Video Recorder

Dahua DH-XVR7216AN-4K-I3 Grabadora de vídeo digital WizSense de 16 canales con soporte para cámaras analógicas e IP Procesador industrial Sistema Linux embebido Entradas CVI 4K Entradas TVI 4K Entradas AHD 4K Reconocimiento facial Este grabador Dahua integra la inteligencia artificial directamente en el equipo para ofrecer una seguridad perimetral avanzada. Gracias a su capacidad de análisis de vídeo, detecta intrusiones, identifica rostros y filtra falsas alarmas causadas por hojas o lluvia, garantizando una vigilancia más precisa y eficiente en cualquier entorno. Dispone de múltiples puertos para conectar cámaras analógicas y digitales, soportando hasta 32 canales de acceso IP. Su diseño compacto de 1U permite una instalación flexible en racks o sobre escritorio, mientras que sus dos bahías para discos duros aseguran un almacenamiento robusto para la grabación continua de los eventos más importantes. Especificaciones técnicas General Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 6 channels, 10 IVS for each channel General Model: 12 channels, 10 IVS for each channel Face Attributes Gender age group glasses expressions face mask beard SMD Plus by Recorder 16 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change Analog Camera Input 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect Camera Input 1. CVI: 4K@25/30 fps 6 MP@20 fps 5 MP@20 fps 5 MP@25 fps 4 MP@25/30 fps 1080p@25/30 fps 720p@25/30 fps 720p@50/60 fps. 2. TVI: 4K@15 fps 5 MP@20 fps 4 MP@25/30 fps 3 MP@25/30 fps 1080p@25/30 fps 720p@25/30 fps. 3. AHD: 4K@15 fps 5 MP@20 fps 4 MP@25/30 fps 3 MP@25/30 fps 1080p@25/30 fps 720p@25/30 fps IP Camera Input Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled Third-party Camera Access ONVIF Panasonic Sony Axis Arecont Samsung Mobile Phone Access IOS Android Record Mode General, motion detection intelligent alarm POS Recording Playback 1/4/9/16 Backup Method USB device and network Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) Disk Group Sí TV Output 1 channel Two-way Talk Yes (share the same audio input with the first channel) RS-485 1 port, for PTZ control HDMI 1 VGA 1 Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B Sistema Main Processor Industrial-grade processor Sistema operativo Embedded Linux Almacenamiento Face Database Capacity Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image Encoding Capacity Main stream: 4K@(1fps–15 fps) 6 MP@(1fps–20 fps) 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@(1fps–25/30fps) Sub stream: 960H@(1fps–15fps) D1,CIF@(1fps–25/30fps) Vídeo y audio Dual-stream Sí Tasa de bits de vídeo 32 kbps–8192 kbps Audio Sampling 8 kHz, 16 bit Tasa de bits de audio 64 kbps Salida de vídeo 1 HDMI, 1 VGA VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable Compresión de vídeo AI Coding Smart H.265+ H.265 Smart H.264+ H.264 Compresión de audio G.711a G.711u PCM Entrada de audio 1-channel RCA 16-channel BNC (Coaxial Audio) Salida de audio 1-channel RCA Red y protocolos Operating Interface Web Local GUI Protocolos de red HTTP HTTPS TCP/IP IPv4 RTSP UDP SMTP NTP DHCP DNS DDNS P2P Interoperabilidad ONVIF 22.12(Profile T Profile S Profile G) CGI SDK Navegador Chrome, IE9 or later, Firefox Network Mode Single-address mode HDD Interface 2 SATA ports, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) Puerto de red 1 (10/100/1000 Mbps Ethernet port, RJ-45) Dimensiones y montaje Peso neto 2.40 kg (5.30 lb) Peso bruto 4.00 kg (8.82 lb) Dimensiones 375.0 mm × 332.0 mm × 53.0 mm (14.76'' × 13.08'' × 2.09'') (W × D × H) Packaging Dimensions 449.0 mm × 170.0 mm × 421.0 mm (17.68'' × 6.70'' × 16.58'') (W × D × H) Instalación Rack or desktop Detección y alarmas Alarmas generales Motion detection video loss tampering Anomaly Alarm No disk storage error disk full camera offline IP conflict MAC conflict Intelligent Alarm Face detection face recognition perimeter protection Acciones ante alarma Record snapshot (panoramic) IPC external alarm output access controller voice prompt buzzer log preset email Alimentación Alimentación DC 12V, 5A Consumo <32 W (without HDD) Condiciones de uso Temperatura de funcionamiento –10 °C to +55 °C (14 °F to +131 °F) Humedad de funcionamiento 10%–90% (RH)
