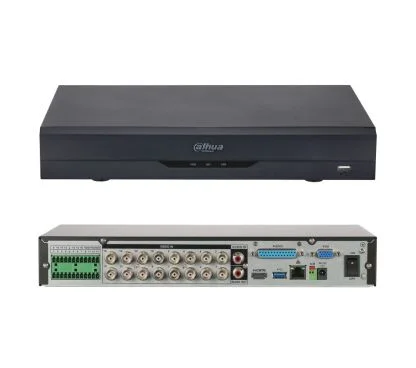

Dahua DH-XVR5816S-4KL-I2-LP
Grabadora de video híbrida WizSense con compresión H.265+ y detección de intrusos
H.265+HDCVIAHDTVICVBSIP
Esta grabadora Dahua combina la máxima compatibilidad con cámaras analógicas e IP en un único dispositivo. Gracias a su procesador integrado y sistema operativo Linux, ofrece un rendimiento superior para la clasificación de objetos y reconocimiento facial avanzado.
Optimizada para entornos exigentes, soporta hasta 16 canales de entrada analógica y 16 canales IP simultáneos. Sus funciones de seguridad incluyen detección de movimiento, pérdida de video y activación de alarmas, permitiendo una gestión centralizada y eficiente de todos los flujos de vídeo.
Especificaciones técnicas
General
Performance2 channel s , 10 IVS for each channelObject classificationHuman/Vehicle secondary recognition for tripwire and intrusionAI SearchSearch by target classification (Human, Vehicle)Performance2 channels, max 12 face pictures/sec processingStranger ModeDetect strangers' faces (not in device's face database). Similarity threshold can be set manually.AI SearchUp to 8 target face images search at same time, similarity threshold can be set for each target face image.Database ManagementUp to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.Database ApplicationEach database can be applied to video channels independently .Trigger EventsBuzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.Performance16 channelsAnalog Camera Input16 channels, BNCHDCVI Camera Input4K, 6MP, 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fpsAHD Camera Input4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fpsTVI Camera Input4K, 5MP, 4MP, 3MP, 1080p@25/30, 720p@25/30 fpsCVBS Camera InputPAL/NTSCIP Camera Input16+16 channels, each channel up to 12MPTwo-way Talk1 Mic In, 1 Mic Out, BNCRecord RateMain stream: All channel 4K(1fps–7fps); 6MP(1 fps– 10 fps); 5MP(1 fps–12 fps); 4K-N/4MP/3MP(1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps); Sub steram:960H(1 fps–15 fps); D1/CIF(1 fps–25/30 fps)Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, StopRecord Interval1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 sMax. User Access128 usersSmart PhoneiPhone, iPad, AndroidTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsRelay Output6Playback1/4/9/16Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkInternal HDD8 SATA Ports, up to 10TB capacity for each diskeSATA1 PortRS4851 Port, for PTZ ControlRS2321 Port, for PC Communication & KeyboardLoop Out16 Channel, BNC, support HDCVI/AHD/TVI/CVBSCondiciones de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F), 0–90% RHThird-party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and moreMulti-screen DisplayWhen IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36Entrada de alarma16Storage Conditions–20 °C to +70 °C (–4 °F to +158 °F) , 0–90% RH
Vídeo y audio
Audio In/Out16/1, BNCCompresiónAI Coding/H.265+/H.265/H.264+/H.264Bit Rate32 Kbps–6144 Kbps Per ChannelCompresión de audioG.711A, G.711U, PCMAudio Sample Rate8 KHz, 16 bit Per ChannelTasa de bits de audio64 Kbps Per ChannelVideo DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Red y protocolos
Interfaz2 HDMI, 1 VGA, 1 TVInterfaz2 RJ-45 Ports (1000 Mbps)Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 16.12, CGI ConformantUSB4 USB Ports (2 USB 2.0 , 2 USB 3.0)
Dimensiones y montaje
Dimensiones2U, 440 mm × 463 mm × 95 mm (17.32'' × 18.23'' × 3.73'')Peso neto7.08 kg (15.6 lb)Peso bruto9.58 kg (21.1lb)InstalaciónDesktop/racket mounted
Imagen y óptica
Resolución4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080p, 720p, 960H, D1, CIFResoluciónHDMI 1:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI2/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720Menú en pantalla (OSD)Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Certificaciones
CertificationsFCC: Part 15 Subpart BCECE-LVD: EN 60950-1/IEC 60950-1CE-EMCEN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
Sistema
Main ProcessorEmbedded ProcessorSistema operativoEmbedded LINUX
Alimentación
AlimentaciónAC100V-240V, 50/60HzConsumo< 20 W
