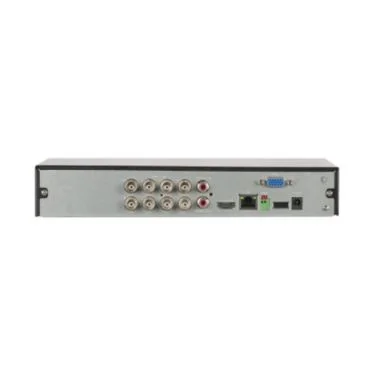

Dahua DH-XVR5108HS-I3(V3.0)
Grabadora de vídeo digital compacta de 1U con compresión H.265+ y capacidades avanzadas de inteligencia artificial para vigilancia perimetral y reconocimiento facial.
Procesador industrialSistema operativo LinuxEntradas IP hasta 12 canalesEntradas analógicas 8 canalesReconocimiento facial 2 canalesProtección perimetral 4 canalesCompresión H.265+Interfaz web y local
Esta grabadora Dahua combina un procesador industrial robusto con un sistema operativo Linux embebido para garantizar un funcionamiento estable en entornos exigentes. Su arquitectura permite conectar hasta doce cámaras IP de alta resolución, mientras que sus ocho puertos BNC soportan automáticamente formatos analógicos como HDCVI, AHD, TVI y CVBS, ofreciendo una versatilidad total para instalaciones mixtas.
Gracias a sus algoritmos de inteligencia artificial, el equipo detecta y analiza automáticamente movimientos en la periferia, identifica rostros y filtra falsas alarmas causadas por hojas o lluvia. La compresión H.265+ optimiza el almacenamiento y el ancho de banda sin perder detalles, mientras que la interfaz web facilita el control remoto desde cualquier dispositivo compatible con iOS o Android.
Especificaciones técnicas
Vídeo y audio
AI Video Quality Analytics by Recorder8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and whiteDual-streamSíTasa de bits de vídeo32 kbps–6144 kbpsAudio Sampling8 kHz, 16 bitTasa de bits de audio64 kbpsSalida de vídeo1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720Compresión de vídeoAI Coding; Smart H.265+; H.265; Smart H.264+; H.264Compresión de audioG.711a; G.711u; PCMEntrada de audio1-channel RCA 8-channel BNC (Coaxial Audio)Salida de audio1-channel RCA
Red y protocolos
Operating InterfaceWeb; Local GUIProtocolos de redHTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)InteroperabilidadONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDKNavegadorChrome; IE; Safari; Edge; FirefoxDisk Interface1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.USB2 (1 front USB 2.0 port, 1 rear USB 2.0 port)Puerto de red1 (10/100 Mbps Ethernet port, RJ-45)
Dimensiones y montaje
Peso neto0.97 kg (2.14 lb)Peso bruto1.39 kg (3.07 lb)Dimensiones260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.37" × 1.87") (W × D × H)Packaging Dimensions333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)InstalaciónDesktop
Detección y alarmas
Alarmas generalesMotion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarmAnomaly AlarmError (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offlineIntelligent AlarmFace detection; face recognition; perimeter protection; SMD PlusAcciones ante alarmaRecord; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email
Sistema
Main ProcessorIndustrial-grade processorSistema operativoEmbedded Linux
Alimentación
Alimentación12 VDC, 2AConsumo<7 W(without HDD)
General
Perimeter Performance AI by Recorder (Number of Channels)Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 4 channels, 10 IVS rules for each channelFace Attributes6 attributesSMD Plus by Recorder8 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition changeSMD Plus by Camera12 channelsScene Changing by Recorder1 channelIrregular Black Block Masking by Recorder1 channelAnalog Camera Input8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detectCamera Input1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.IP Camera InputUp to 12 channels of IPC access 4 IP channels by default +8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used.Third-party Camera AccessPanasonic; Sony; Hanwha; Axis; Arecont; ONVIFMobile Phone AccessiOS; AndroidRecord ModeGeneral; alarm; motion detection; intelligent; POSRecording Playback1/4/9 It changes to 1/4 split when Face or IVS&SMD is selected in AI Mode.Backup MethodUSB device and networkPlayback ModeInstant playback; general playback; event playback; tag playback; smart playbackTwo-way TalkYes (share the same audio input with the first channel)RS-4851HDMI1VGA1The information below only applies to hardware version 3.0. of the product.Multi-screen DisplayWhen IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16CertificationsCE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035
Condiciones de uso
Temperatura de funcionamiento–10 °C to +55 °C (+14 °F to +131 °F)Temperatura de almacenamiento–20 °C to +60 °C (–4 °F to +140 °F)Humedad de funcionamiento10%–90% (RH), non-condensing
Almacenamiento
Face Database CapacityUp to 10 face databases with 10,000 images.Encoding CapacityMain stream: 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@(1-12fps） 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: D1/CIF@(1 fps–15 fps)
