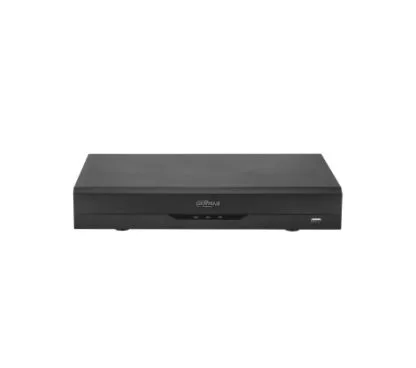

Dahua DH-XVR5104HE-I3 H.265+/H.265 dual-stream video compression · Supports all-channels AI Coding · Supports HDCVI/AHD/TVI/CVBS

Dahua DH-XVR5104HE-I3 Grabadora de vídeo digital WizSense de 4 canales con compresión H.265+ y soporte para cámaras analógicas e IP H.265+ Dual-stream HDCVI AHD TVI CVBS AI Coding SMD Plus Esta grabadora Dahua integra un procesador industrial y sistema operativo Linux para un rendimiento superior. Soporta hasta 6 canales de cámaras IP y 4 analógicas, ofreciendo una versatilidad total para instalaciones mixtas. Gracias a su compresión H.265+ y codificación AI, optimiza el almacenamiento sin perder calidad en las grabaciones. Disfruta de funciones avanzadas de seguridad con detección facial, reconocimiento de género y edad, y protección de perímetro. El sistema SMD Plus filtra falsas alarmas provocadas por hojas o lluvia, mientras que la detección de máscaras y barbas añade una capa extra de control. Ideal para gestionar múltiples flujos de vídeo con eficiencia. Especificaciones técnicas Vídeo y audio Dual-stream Sí Tasa de bits de vídeo 32 kbps–6144 kbps Audio Sampling 8 kHz, 16 bit Tasa de bits de audio 64 kbps Salida de vídeo 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Compresión de vídeo AI Coding H.265+ H.265 H.264+ H.264 Compresión de audio G.711a G.711u PCM Entrada de audio 4-channel RCA 4-channel BNC (Coaxial Audio) Salida de audio 1-channel RCA Red y protocolos Operating Interface Web Local GUI Protocolos de red HTTP HTTPS TCP/IP IPv4 RTSP UDP SMTP NTP DHCP DNS DDNS P2P Interoperabilidad ONVIF 21.06 CGI Conformant Navegador Chrome IE9 or later Firefox Network Mode Single-address mode HDD Interface 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature. USB 2 USB ports (USB 2.0) Puerto de red 1 (10/100 Mbps Ethernet port, RJ-45) Detección y alarmas Alarmas generales Motion detection, Video Loss, tampering, and local alarm Anomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflict Intelligent Alarm Face detection, face recognition, perimeter protection Acciones ante alarma Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email Entrada de alarma 8 Salida de alarma 3 Sistema Main Processor Industrial-grade processor Sistema operativo Embedded Linux Almacenamiento Face Database Capacity Up to 10 face databases and 10,000 images. Encoding Capacity Main stream: All channel 5M-N (1 fps–10 fps) 4M-N/1080P (1 fps–15 fps) 1080N/720P/960H/ D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps) Alimentación Alimentación 12 VDC, 1.5 A Consumo <4 W General Perimeter Performance AI by Recorder (Number of Channels) Advanced Model : 1 channel, 10 IVS for each channel General Model : 2 channels, 10 IVS for each channel Face Attributes Gender age group glasses expressions face mask beard SMD Plus by Recorder 4-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change Analog Camera Input 4 channels, BNC: adaptive access by default HDCVI, AHD, TVI and CVBS access can be configured. Camera Input 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC IP Camera Input Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. Third-party Camera Access ONVIF Panasonic Sony Axis Arecont Pelco Canon Samsung Mobile Phone Access iOS Android Record Mode General, motion detection intelligent alarm POS Recording Playback 1/4 Backup Method USB device and network Playback Mode Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) Two-way Talk Yes (share the same audio input with the first channel) RS-485 1 port, for PTZ control HDMI 1 VGA 1 Multi-screen Display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 Certifications FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2 EN 61000-3-3 EN 55032 EN50130 EN 55024 Dimensiones y montaje Peso neto 1.1 kg (2.43 lb) Peso bruto 1.8 kg (3.97 lb) Dimensiones 325.0 mm × 257.2 mm × 55.0 mm (12.80'' × 10.10'' × 2.17'')(W × D × H) Packaging Dimensions 372.0 mm × 308.0 mm × 117.0 mm (14.65" × 12.13" × 4.61") (W × D × H) Instalación Desktop Condiciones de uso Temperatura de funcionamiento –10 °C to +55 °C (+14 °F to +131 °F) Humedad de funcionamiento 0%–90% (RH)
