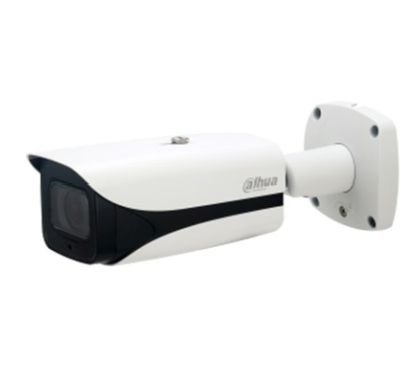

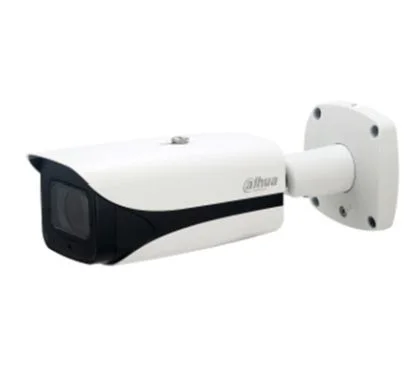

Dahua DH-IPC-HFW5842HP-ZHE-2712F-DC12AC24V-S3
Cámara IP WizMind de 8 megapíxeles con óptica motorizada y capacidades avanzadas de Inteligencia Artificial para seguridad perimetral y control de accesos.
8MPÓptica motorizadaDetección facialConteo de personasProtección perimetralDetección de vehículos
Esta cámara Dahua WizMind combina una óptica motorizada de 2,7 a 12 mm con un sensor CMOS de 8 megapíxeles para ofrecer imágenes de alta definición incluso en condiciones de poca luz. Gracias a su sensor de 1/1,8 pulgadas y su tecnología de iluminación inteligente, garantiza una visibilidad clara hasta 60 metros, ideal para vigilar grandes extensiones de terreno o edificios.
Gracias a sus algoritmos de aprendizaje profundo, la cámara realiza funciones avanzadas como la detección facial, el reconocimiento de expresiones y el conteo de personas en áreas específicas. Su sistema de protección perimetral identifica intrusiones, vehículos y objetos abandonados, generando alertas inmediatas y facilitando la gestión de flujos de personas con informes detallados.
Especificaciones técnicas
Imagen y óptica
Sensor de imagen1/1.8”8Megapixel progressive CMOSResolución máxima3840 (H) × 2160 (V)Sistema de exploraciónProgressiveObturador electrónicoAuto/Manual 1/3 s–1/100000 sIluminación mínima0.003 [email protected] (Color,30IRE) 0.0003 [email protected] (B/W,30IRE) 0 Lux (Illuminator on)Relación señal/ruido> 56 dBDistancia de iluminación60 m (196.85 ft)Control de iluminadoresAuto/ManualNúmero de iluminadores4 (IR LED)Tipo de objetivoMotorized vari-focalDistancia focal2.7 mm–12 mmApertura máximaF1.2Ángulo de visiónHorizontal: 114°(W)–47°(T) Vertical: 59°(W)–27°(T) Diagonal: 141° (W–55°(T)Iris TypeAutoDistancia mínima de enfoqueW: 1 M (3.29ft) T: 2.5 M (8.20ft)Resolución8M (3840 × 2160), 6M (3072 × 2048/3072 × 1728), 5M (2592 × 1944), 4M (2688 × 1520), 3M (2048 × 1536/2304 × 1296), 1080p(1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)Día y nocheAuto (ICR)/Color/B/WCompensación de contraluz (BLC)SíAtenuación de luces intensas (HLC)SíRango dinámico amplio (WDR)120 dBBalance de blancosAuto/natural/street lamp/outdoor/manual/regional CustomControl de gananciaAuto/ManualReducción de ruido3D NRRegion of Interest(RoI)Yes (4 areas)Electronic Image Stabilization(EIS)SíSmart IlluminationSíAntinieblaSíImage Rotation0°/90°/180°/270° (Support 90°/270° with 1080p resolution or below)EspejoSíMáscara de privacidad4 areas8MP, 1/1.8" CMOS image sensor, low illuminance, high image definitionWide dynamic, day/night, 3D NR, AWB, HLC, BLC
Vídeo y audio
Compresión de vídeoH.265, H.264,H.264H,H.264B, MJPEG(only supported by sub stream)Smart CodecSmart H.265+/ Smart H.264+Fotogramas por segundoMain Stream: 3840 × 2160 (1–25/30 fps) Sub stream: 704 × 576 (1–25fps);704 × 480 (1–30fps) Third stream: 1920 × 1080 (1–25/30 fps)Stream Capability3 streamsControl de tasa de bitsCBR/VBRTasa de bits de vídeoH.264: 32 kbps-16384 kbps H.265: 12 kbps-16384 kbpsCompresión de audioG.711a; G.711Mu; G726; G.723Entrada de audioAudio Interface: 1/1 channel In/OutH.264&H.265 coding, high compression rationAlarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; BNC; supports max. 256 G SD cardThree streams for two-channel HD video
Red y protocolos
NetworkRJ-45 (10/100 Base-T)SDK and APISíProtocolosIPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; BonjourInteroperabilidadONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P;RTMPNavegadorIE: IE9 and later Chrome: Chrome 42 and later Firefox: Firefox 48.0.2 and later
Almacenamiento
Memoria ROM4 GBMemoria RAM2 GBAlmacenamientoFTP; Micro SD card (256 G); NAS; SFTPStorage conditions–40°C to +60°C (–40°F to +140°F)
General
IVSAbandoned object, moving objectIVS (Perimeter Protection)Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), parking detection, loitering detection, and people gathering.People CountingSupport tripwire number counting, people counting in area, and displaying and outputting yearly/monthly/daily reports.Support queue management, and displaying and outputting monthly/daily reports.Support 4 tripwire rules configuration, people counting in 4 areas, and 4 queue management functionsIntelligent SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.Scene self-adaptation (SSA)SíCyber SecurityVideo encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgradeUser/Host20 (Total bandwidth: 160 M.)Mobile PhoneIOS, AndroidRS-4851 (Bit rate: 1200 bps-115200 bps)Condiciones de funcionamiento–40°C to +60°C (–40°F to +140°F)/Less than 95% RHProtection GradeIIP67, IK10, Anti-Corrosion Protection: NEMA 4X (optional)Max outputs8MP (3840×2160) @25fps/30fpsSoftware de gestiónSmart PSS; DSS; DMSSCertificationsCE-LVD: EN62368-1,EN60950-22 (optional) CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07,UL 50E NEMA Type 4X (optional)
Dimensiones y montaje
Giro, inclinación y rotaciónPan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°Mount TypeModule interfaceCarcasaMetal + PlasticDimensiones340.1 mm × 108.5 mm × 92.9 mm (13.39" × 4.27" × 3.66") (L × W × H)Peso neto1.6 kg (3.53 lb)Peso bruto2.4 kg (5.29 lb)
Detección y alarmas
Face DetectionFace detection, track, priority, snapshot; Upload Optimized snapshot picture; Face enhancement, face exposure, face attribute extract,6 attributes and 8 expressions: Gender, age, glasses,expressions (anger, sadness, disgust, fear, surprise,calm, happiness and confusion), Mouth mask, beard; Face matting setting: face, single inch photo; Three snapshot methods: real-time snapshot, priority snapshot, quality priority; Face angle filter Priority time setting; Support Duration Optimal.Detección de movimientoOFF/ON (4 areas, rectangular)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; defocus detection; external alarm; face detection; people counting in area; stay alarm; people counting; people counting exception detection; safety exception, Queue ManagementEntrada de alarma3 channel In: 5mA 5V DC 2 channel Out: 1000mA 30V DC/500mA 50V ACWith deep learning algorithm, it supports people counting, face detection, perimeter protection etc
Alimentación
Alimentación12V DC/24V AC/PoE+ (802.3at); ePoEConsumoBasic power consumption: 3.7W (12V DC); 5.7W(24V AC); 5.5W (PoE) Max. power consumption (Max. stream + intelligent function + IR LED + focus): 12.2W (12V DC);17.3W(24V AC); 17.1W (PoE) Heat power consumption: 3.3W (12V DC);5.5W(24V AC); 5.5W (PoE)24V AC/12V DC/PoE power supply (the power ports are different depending on the power supply)12V DC power output, max. current 165mA , easy for installation
Condiciones de uso
ROI, SVC, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environmentsIP67, IK10 protection grade
