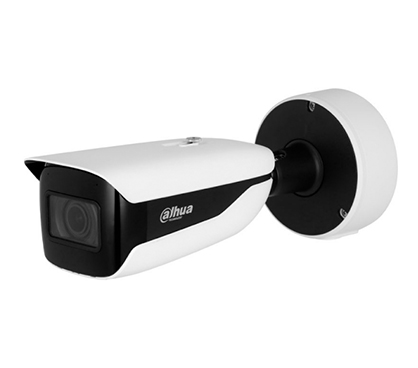

Dahua DH-IPC-HFW5842HP-ZHE-0832-DC12AC24V-S3
Cámara IP de red Dahua WizMind de 8 megapíxeles con óptica motorizada, visión nocturna inteligente y capacidades avanzadas de inteligencia artificial para análisis de vídeo.
8 megapíxelesÓptica motorizada 8~32 mmVisión nocturna 120 metrosWDR 120 dBDetección facialProtección perimetralConteo de personasMicrófono integrado
Esta cámara Dahua WizMind combina una resolución de 8 megapíxeles con un sensor CMOS de alta sensibilidad para capturar imágenes nítidas incluso en condiciones de poca luz. Gracias a su óptica motorizada y el sistema ICR, adapta el enfoque y el color automáticamente, garantizando una claridad excepcional día y noche con una distancia de iluminación de hasta 120 metros.
Equipada con algoritmos de aprendizaje profundo, esta cámara no solo graba, sino que analiza el vídeo en tiempo real. Detecta intrusiones, identifica rostros, cuenta personas y genera mapas de calor para una gestión eficiente de multitudes. Su compresión inteligente H.265+ optimiza el ancho de banda y el almacenamiento, mientras que las funciones de audio y alarma integradas permiten una respuesta rápida ante cualquier incidente de seguridad.
Especificaciones técnicas
Vídeo y audio
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.Compresión de vídeoH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+Fotogramas por segundoMain stream: 3840 × 2160@ (1–25/30 fps) Sub stream: D1@ (1–25/30 fps) Third stream: 1080p@ (1–25/30 fps) Fourth stream: 720p@ (1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability4 streamsControl de tasa de bitsCBR/VBRTasa de bits de vídeoH.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbpsMicrófono integradoYes, built-in dual MicCompresión de audioG.711a; G.711Mu; PCM; G.726; G.723Entrada de audio1 channel (terminal)Salida de audio1 channel (terminal)
Detección y alarmas
Smart Object DetectionSmart abandoned object; smart missing objectFace DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.Smart Sound DetectionSíDetección de movimientoOFF/ON (4 areas, rectangular)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exceptionEntrada de alarma3 channels in: wet contact, 5mA 3V–5V DCSalida de alarma2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC
Red y protocolos
Puerto de redRJ-45 (10/100 Enhancement Base-T)SDK and APISíProtocolos de redIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2PInteroperabilidadONVIF (Profile S/Profile G/Profile T); CGINavegadorIE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and laterMobile ClientiOS; Android
Dimensiones y montaje
Ajuste de ánguloPan: 0-360° Tilt: 0-90° Rotation: 0-360°Casing MaterialMetal + plasticDimensiones345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H)Peso neto1.6 kg (3.53 lb)Peso bruto2.4 kg (5.29 lb)
Condiciones de uso
Temperatura de funcionamiento–40 °C to +60 °C (–40 °F to +140 °F)Humedad de funcionamiento≤95%Temperatura de almacenamiento–40 °C to +60 °C (–40 °F to +140 °F)Humedad de almacenamiento10%–95% (RH), non-condensingGrado de protecciónIP67; IK10
Alimentación
Power Output12 VDC power output, max. current 165 mA, peak current 700 mAAlimentación12 VDC/24 VAC/PoE (802.3at)/ePoEDual Power BackupWhen the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.ConsumoBasic: 4.5 W (12 VDC); 5.6 W (24 VAC); 6 W (PoE) Max. (Focus+WDR+ Intelligence on+IR on): 13.5 W (12 VDC); 15.3 W (24 VAC); 16.9 W (PoE) Heating: 3 W (12 VDC); 3.6 W (24 VAC); 3.8 W (PoE)
Imagen y óptica
Sensor de imagen1/1.8" CMOSResolución máxima3840 (H) × 2160 (V)Sistema de exploraciónProgressiveObturador electrónicoAuto/Manual 1/3 s–1/100,000 sIluminación mínima0.0007 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)Relación señal/ruido> 56 dBDistancia de iluminaciónUp to 60 m (196.85 ft) (IR)Control de iluminadoresAuto; Zoomprio; ManualNúmero de iluminadores4 (IR LED)Tipo de objetivoMotorized vari-focalMontura del objetivoφ14Distancia focal2.7 mm–12.0 mmApertura máximaF1.2Ángulo de visiónH: 112°–48°; V: 58°–27°; D: 137°–55°Control de irisAutoIris Control TypeP-IrisDistancia mínima de enfoque1.75 m (5.74 ft)Resolución8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Día y nocheAuto(ICR)/Color/B/WCompensación de contraluz (BLC)SíAtenuación de luces intensas (HLC)SíRango dinámico amplio (WDR)120 dBBalance de blancosAuto; natural; street lamp; outdoor; manual; regional customControl de gananciaAutoReducción de ruido3D NRRegion of Interest (RoI)Yes (4 areas)Image StabilizationElectronic Image Stabilization (EIS)Smart IlluminationSíAntinieblaSíImage Rotation0°/90°/180°/270° (Support 90°/270° with 4M (2688×1520 )resolution and lower)EspejoSíMáscara de privacidad8 areas
General
EPTZSíIVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detectionSMDSMD 3.0AcuPickUses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.AI SSASíPeople CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.Heat MapSíSmart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosAI CodingAI H.265; AI H.264Scene Self-adaptation (SSA)SíLDCSíUser/Host20 (Total bandwidth: 80 M)Cyber SecurityConfiguration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certificationRS-4851 (baud rate range:1200 bps–115200 bps)Analog Output1 channel (CVBS output: BNC)Software de gestiónSmartPSS Lite; DSS; DMSSCertificationsCE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, UL 50E NEMA Type 4X (optional)
Almacenamiento
Memoria ROM4 GBMemoria RAM2 GBAlmacenamientoFTP; SFTP; Micro SD card (support max. 512 GB); NAS
