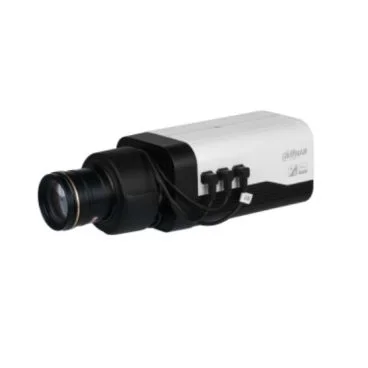

Dahua DH-IPC-HF5442FP-ZE-S3
Cámara box WizMind de 4MP para interior con protección perimetral, detección facial y conteo de personas
4MPWDR 140 dBDetección facialConteo de personasMapa de calorMicrófono integrado
Esta cámara Dahua WizMind combina una resolución de 4 megapíxeles con tecnologías avanzadas de IA para una vigilancia inteligente. Gracias a su sistema de protección perimetral y detección de objetos abandonados, puedes identificar intrusiones con precisión y clasificar automáticamente si se trata de vehículos o personas. Su capacidad de análisis facial permite extraer atributos y gestionar accesos de forma segura.
La cámara incluye micrófono integrado y detección de sonido inteligente para alertas por audio. Cuenta con múltiples entradas y salidas de alarma y audio, además de soporte para tarjetas Micro SD de hasta 512 GB. Su diseño metálico y la estabilización electrónica garantizan imágenes claras incluso en condiciones de baja iluminación o con movimiento brusco.
Especificaciones técnicas
General
IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detectionSMDSMD 3.0AcuPickUses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.AI SSASíPeople CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.Heat MapSíSmart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosAI CodingAI H.265; AI H.264Scene Self-adaptation (SSA)SíUser/Host20 (Total bandwidth: 80 M)Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot;Firmware encryption;Generation and importing of X.509 certificationRS-4851 (baud rate range:1200 bps–115200 bps)Analog Output1 channel (CVBS output: BNC)The parameters and datasheets below can only be applied to 5442-Z-S3 series.Software de gestiónSmartPSS Lite; DSS; DMSSCertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Detección y alarmas
Smart Object DetectionSmart abandoned object; smart missing objectFace DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time settingSmart Sound DetectionSíDetección de movimientoOFF/ON (4 areas, rectangular)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detectionEntrada de alarma2 channels in: wet contact, 5mA 3V–5V DCSalida de alarma2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC
Red y protocolos
Puerto de redRJ-45 (10/100 Enhancement Base-T)SDK and APISíProtocolos de redIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2PInteroperabilidadONVIF (Profile S/Profile G/Profile T); CGINavegadorIE: IE 9 and later; Chrome: Chrome 102 and later Firefox: Firefox 88 and laterMobile ClientiOS; Android
Alimentación
Power Output12 VDC power output, max. current 165 mA, peak current 700 mAAlimentación12 VDC/24 VAC/PoE (802.3af)/ePoEConsumoBasic: 5.2 W (12 VDC); 5.3 W (24 VAC); 5.6 W (PoE) Max. (H.265+ WDR+ Intelligence on): 9.2 W (12 VDC); 10.7 W (24 VAC); 11.0 W (PoE)
Imagen y óptica
Sensor de imagen1/1.8" CMOSResolución máxima2688 (H) × 1520 (V)Sistema de exploraciónProgressiveObturador electrónicoAuto/Manual 1/3 s–1/100,000 sIluminación mínimaWith 10mm–40mm lens: 0.0006 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE)Relación señal/ruido> 56 dBMontura del objetivoC/CSResolución4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Día y nocheAuto(ICR)/Color/B/WCompensación de contraluz (BLC)SíAtenuación de luces intensas (HLC)SíRango dinámico amplio (WDR)140 dBBalance de blancosAuto; natural; street lamp; outdoor; manual; regional customControl de gananciaAutoReducción de ruido3D NRRegion of Interest (RoI)Yes (4 areas)Image StabilizationElectronic Image Stabilization (EIS)AntinieblaSíImage Rotation0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)EspejoSíMáscara de privacidad8 areas
Vídeo y audio
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.Compresión de vídeoH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+Fotogramas por segundoMain stream: 2688 × 1520 (1 fps–25/30 fps) /1920 × 1080 (1 fps–50/60 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability4 streamsControl de tasa de bitsCBR/VBRTasa de bits de vídeoH.264: 32 kbps–16384 kbps H.265: 12 kbps–11008 kbpsMicrófono integradoSíCompresión de audioG.711a; G.711Mu; PCM; G.726; G.723Entrada de audio2 channels (3.5mm JACK port)Salida de audio1 channel (3.5mm JACK port)
Dimensiones y montaje
Casing MaterialMetalDimensiones161.6 mm × 86.8 mm × 74.0 mm (6.36" × 3.42" × 2.91") (L × W × H)Peso neto0.76 kg (1.68 lb)Peso bruto0.98 kg (2.16 lb)
Condiciones de uso
Temperatura de funcionamiento–30 °C to +60 °C (–22 °F to +140 °F)Humedad de funcionamiento≤95%Temperatura de almacenamiento–40 °C to +60 °C (–40 °F to +140 °F)Humedad de almacenamiento10%–95% (RH), non-condensing
Almacenamiento
Memoria ROM4 GBMemoria RAM1 GBAlmacenamientoFTP; SFTP; Micro SD card (support max. 512 GB); NAS
