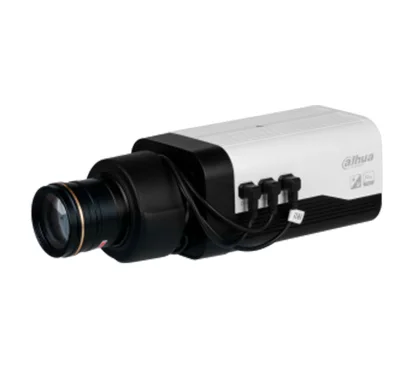

Dahua DH-IPC-HF5241FP-ZE-S3
Cámara box IP Dahua WizMind con sensor CMOS 2MP, codificación inteligente AI-H.265+ y tecnología ICR para máxima claridad en baja luz.
Sensor CMOS 1/2.8"WDR 120 dBDetección facialConteo de personasProtección perimetral IVSMapa de calorMicrófono integradoAlimentación PoE
Esta cámara Dahua WizMind combina un sensor CMOS de alta resolución con algoritmos de IA para ofrecer una vigilancia inteligente y detallada. Gracias a su tecnología ICR y WDR de 120 dB, garantiza imágenes claras incluso en condiciones de poca luz o con fuertes contrastes lumínicos, ideal para entornos exigentes.
Disfruta de funciones avanzadas como la detección facial, el conteo de personas y la protección perimetral sin necesidad de software adicional. Su versatilidad se completa con entradas y salidas de audio y alarma, soporte para tarjetas MicroSD y alimentación PoE, facilitando la instalación y el análisis de eventos críticos en tiempo real.
Especificaciones técnicas
Imagen y óptica
Sensor de imagen1/2.8" CMOSResolución máxima1920 (H) × 1080 (V)Sistema de exploraciónProgressiveObturador electrónicoAuto/Manual 1/3 s–1/100,000 sIluminación mínimaWith 10 mm–40 mm lens: 0.0006 [email protected] (Color, 30 IRE) 0.0003 [email protected] (B/W, 30 IRE)Relación señal/ruido>56 dBMontura del objetivoC/CSResolución1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Día y nocheAuto(ICR)/Color/B/WCompensación de contraluz (BLC)SíAtenuación de luces intensas (HLC)SíRango dinámico amplio (WDR)120 dBBalance de blancosAuto; natural; street lamp; outdoor; manual; regional customControl de gananciaAutoReducción de ruido3D NRRegion of Interest (RoI)Yes (4 areas)Image StabilizationElectronic Image Stabilization (EIS)AntinieblaSíImage Rotation0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)EspejoSíMáscara de privacidad8 areas
Vídeo y audio
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.Compresión de vídeoH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+Fotogramas por segundoMain stream: 1080p@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability4 streamsControl de tasa de bitsCBR/VBRTasa de bits de vídeoH.264: 32 kbps–12032 kbps; H.265: 12 kbps–7424 kbpsMicrófono integradoSíCompresión de audioG.711a; G.711Mu; PCM; G.726; G.723Entrada de audio2 channels (3.5mm JACK port)Salida de audio1 channel (3.5mm JACK port)
Condiciones de uso
Temperatura de funcionamiento–30 °C to +60 °C (–22 °F to +140 °F)Humedad de funcionamiento≤95%Temperatura de almacenamiento–40 °C to +60 °C (–40 °F to +140 °F)Humedad de almacenamiento10%–95% (RH), non-condensing
Almacenamiento
Memoria ROM4 GBMemoria RAM1 GBAlmacenamientoFTP; SFTP; Micro SD card (support max. 512 GB); NAS
Alimentación
Power Output12 VDC power output, max. current 165 mA, peak current 700 mAAlimentación12 VDC/24 VAC/PoE (802.3af)/ePoEConsumoBasic: 4.8 W (12 VDC); 5.0 W (24 VAC); 5.6 W (PoE) Max. (H.265+ WDR+ Intelligence on): 8.8 W (12 VDC); 10.5 W (24 VAC); 11.1 W (PoE)
General
IVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detectionSMDSMD 3.0AcupickUses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.AI SSASíPeople CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.Heat MapSíSmart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosAI CodingAI H.265; AI H.264Scene Self-adaptation (SSA)SíUser/Host20 (Total bandwidth: 80 M)Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certificationRS-4851 (baud rate range:1200 bps–115200 bps)Analog Output1 channel (CVBS output: BNC)Software de gestiónSmartPSS Lite; DSS; DMSSCertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Detección y alarmas
Smart Object DetectionSmart abandoned object; smart missing objectFace DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.Smart Sound DetectionSíDetección de movimientoOFF/ON (4 areas, rectangular)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detectionEntrada de alarma2 channels in: wet contact, 5mA 3V–5V DCSalida de alarma2 channels out: dry contact, 1,000mA 30V DC/500mA 50V AC
Red y protocolos
Puerto de redRJ-45 (10/100 Enhancement Base-T)SDK and APISíProtocolos de redIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2PInteroperabilidadONVIF (Profile S/Profile G/Profile T); CGI;NavegadorIE: IE 9 and later Chrome: Chrome 102 and later Firefox:Firefox 88 and laterMobile ClientiOS; Android
Dimensiones y montaje
Casing MaterialMetalDimensiones161.6 mm × 86.8 mm × 74.0 mm (6.36" × 3.42" × 2.91") (L × W × H)Peso neto0.76 kg (1.68 lb)Peso bruto0.98 kg (2.16 lb)
