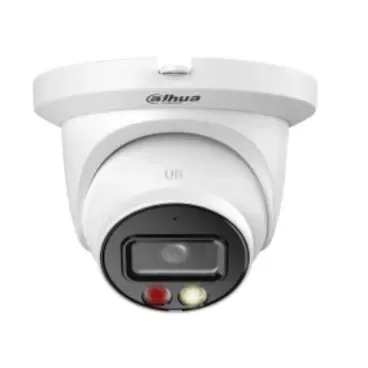

Dahua DH-IPC-HDW2449TMP-S-IL-0280B-S2 Cámara IP WizSense 4MP, sensor CMOS 1/2.9", lente fija 2.8mm, Smart Dual Light, IP67

Dahua DH-IPC-HDW2449TMP-S-IL-0280B-S2 (DH-IPC-HDW2449TMP-S-IL-0280B-S2) Cámara de red WizSense de 4 MP con tecnología Smart Dual Light y sensor CMOS de 1/2.9" para vigilancia inteligente 4 MP Smart Dual Light WizSense IP67 PoE Micrófono integrado H.265+ Rotación 360º Esta cámara de red Dahua combina un sensor CMOS de alta sensibilidad con tecnología Smart Dual Light para ofrecer imágenes de color incluso en condiciones de baja luminosidad. Gracias a su algoritmo inteligente, el sistema activa automáticamente la luz blanca solo cuando detecta movimiento relevante, minimizando la contaminación lumínica y ahorrando energía. Ideal para exteriores, cuenta con protección IP67 y un rango de voltaje amplio que garantiza un funcionamiento estable ante fluctuaciones eléctricas. Equipada con la serie WizSense, la cámara permite funciones avanzadas de detección de intrusión y protección perimetral con clasificación precisa de peatones y vehículos. Su lente fija de 2.8 mm o 3.6 mm ofrece un campo de visión amplio y detalles nítidos gracias a la apertura F1.6 y la tecnología Starlight. Además, soporta almacenamiento local en tarjetas Micro SD de hasta 256 GB y transmisión de audio mediante micrófono incorporado, facilitando la identificación de incidentes en tiempo real. Con codificación H.265+ y Smart H.264+, optimiza el ancho de banda y reduce los costes de almacenamiento sin sacrificar la calidad del video. Su diseño compacto y robusto permite una instalación sencilla mediante alimentación PoE o adaptador de 12 VDC, adaptándose a entornos hostiles desde -40 °C hasta +60 °C. La gestión remota es fluida a través de protocolos estándar como ONVIF y RTSP, integrándose perfectamente en cualquier sistema de videovigilancia profesional. Camera Image Sensor 1/2.9" CMOS Max. Resolution 2688 (H) × 1520 (V) ROM 128 MB RAM 128 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance up to 30 m (98.43 ft) (IR) up to 30 m (98.43 ft) (Warm light) Illuminator On/Off Control Auto Manual Illuminator Number 1 (IR LED) 1 (Warm light) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm 3.6 mm Max. Aperture F1.6 Field of View 2.8 mm: H: 95° V: 52° D: 114° 3.6 mm: H: 78° V: 41° D: 94° Iris Control Fixed Close Focus Distance 2.8 mm: 0.9 m (2.95 ft) 3.6 mm: 1.6 m (5.25 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 63.6 m (208.66 ft) 25.4 m (83.33 ft) 12.7 m (41.67 ft) 6.4 m (20.99 ft) 3.6 mm 85.4 m (280.18 ft) 34.2 m (112.20 ft) 17.1 m (56.10 ft) 8.5 m (27.89 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. Intelligence IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos Video Video Compression H.264H H.265 H.264 H.264B MJPEG (Only supported by the sub stream) Smart Codec Smart H.265+ Smart H.264+ Video Frame Rate Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 2 streams Resolution 4M (2688 × 1520/2560 × 1440) 3M (2304 × 1296) 1080p (1920 × 1080) 1.3M (1280 × 960) 720p (1280 × 720) D1 (704 × 576/704 × 480) VGA (640 × 480) CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB White Balance Auto natural street lamp outdoor manual regional custom Gain Control Auto Manual Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Audio Compression G.711a G.711Mu PCM G.726 Alarm Alarm Event No SD card SD card full SD card error network disconnection IP conflict illegal access motion detection video tampering tripwire intrusion voltage detection security exception SMD Network Network Port RJ-45 (10/100 Base-T) SDK and API Yes Network Protocol IPv4 IPv6 HTTP TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS NTP Multicast ICMP IGMP P2P Interoperability ONVIF (Profile S/Profile G/Profile T) CGI User/Host 6 (Total bandwidth: 36 M) Storage FTP SFTP Micro SD card (support max. 256 GB) Browser IE Chrome Firefox Management Software DSS DMSS Mobile Client iOS Android Security Trusted execution Digest Security logs WSSE Account lockout syslog 802.1x IP/MAC filtering HTTPS Trusted upgrade Trusted boot Generation and importing of X.509 certification Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 Power Power Supply 12 VDC/PoE (802.3af) Power Consumption Basic: 2.1 W (12 VDC) 2.5 W (PoE) Max. (H.265 + intelligence on + WDR + warm light): 4.4 W (12 VDC) 5.2 W (PoE) Environment Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity ≤95% Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Protection IP67 Structure Casing Material Inner core: Metal Cover: Metal Decoration ring: Plastic Product Dimensions 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") Net Weight 0.46 kg (1.01 lb)
