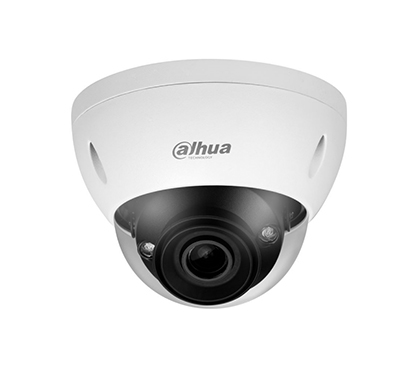

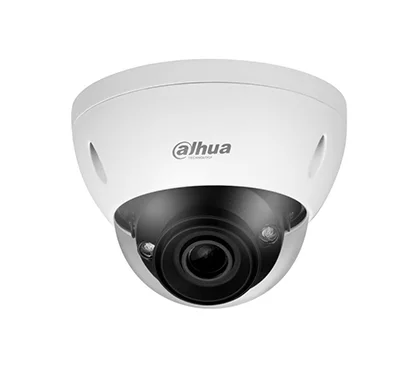

Dahua DH-IPC-HDBW5842EP-ZE-0832-DC12AC24V-S3
Cámara IP de red 8MP con óptica motorizada, detección facial avanzada y protección perimetral inteligente.
8MP@25/30ipsÓptica motorizada 8~32 mmSmart IR 40mDetección facialConteo de personasProtección perimetral
Esta cámara Dahua combina una resolución de 8 megapíxeles con un sensor CMOS de 1/1.8" para capturar imágenes de alta definición incluso en condiciones de poca luz. Gracias a su tecnología ICR, logra una iluminación mínima de 0,0008 lux en color y 0,0004 lux en blanco y negro, garantizando una visibilidad perfecta día y noche.
Equipada con un sistema de visión artificial, permite funciones avanzadas como la detección de vehículos y peatones, reconocimiento de atributos faciales y control de accesos mediante contadores de personas. Su compresión inteligente H.265+ optimiza el ancho de banda y el almacenamiento, mientras que la detección de sonido y el análisis de metadatos mejoran la seguridad en cualquier entorno de vigilancia.
Especificaciones técnicas
Vídeo y audio
Video MetadataMotor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.Compresión de vídeoH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)Smart CodecSmart H.265+; Smart H.264+Fotogramas por segundoMain stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.Stream Capability4 streamsControl de tasa de bitsCBR/VBRTasa de bits de vídeoH.264: 32 kbps–16384 kbps; H.265: 12 kbps–13568 kbpsMicrófono integradoSíCompresión de audioG.711a; G.711Mu; PCM; G.726; G.723Entrada de audio1 channel (RCA port)Salida de audio1 channel (RCA port)
Detección y alarmas
Smart Object DetectionSmart abandoned object; smart missing objectFace DetectionFace detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time settingSmart Sound DetectionSíDetección de movimientoOFF/ON (4 areas, rectangular)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detectionEntrada de alarma2 channels in: wet contact, 5mA 3V–5V DCSalida de alarma1 channel out: wet contact, 300mA 12V DC
Red y protocolos
Puerto de redRJ-45 (10/100 Enhancement Base-T)SDK and APISíProtocolos de redIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2PInteroperabilidadONVIF (Profile S/Profile G/Profile T); CGINavegadorIE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and laterMobile ClientiOS; Android
Dimensiones y montaje
Ajuste de ánguloPan: 0°–355° Tilt: 0°–65° Rotation: 0°–355°Casing MaterialMetal + plasticDimensionesΦ159.1 mm × 118.1 mm (6.26" × Φ4.65")Peso neto0.91 kg (2.01 lb)Peso bruto1.22 kg (2.69 lb)
Condiciones de uso
Temperatura de funcionamiento–30 °C to +60 °C (–22 °F to +140 °F)Humedad de funcionamiento≤95%Temperatura de almacenamiento–40 °C to +60 °C (–40 °F to +140 °F)Humedad de almacenamiento10%–95% (RH), non-condensingGrado de protecciónIP67; IK10
Alimentación
Alimentación12 VDC/24 VAC/PoE (802.3af)/ePoEDual Power BackupWhen the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.ConsumoBasic: 4.1 W (12 VDC); 4.9 W (24 VAC); 5.9 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10.0 W (12 VDC); 11.7 W (24 VAC); 12.2 W (PoE)
Imagen y óptica
Sensor de imagen1/1.8" CMOSResolución máxima3840 (H) × 2160 (V)Sistema de exploraciónProgressiveObturador electrónicoAuto/Manual 1/3 s–1/100,000 sIluminación mínima0.0008 [email protected] (Color, 30 IRE) 0.0004 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)Relación señal/ruido> 56 dBDistancia de iluminaciónUp to 40 m (131.23 ft) (IR)Control de iluminadoresAuto;Zoomprio;ManualNúmero de iluminadores3 (IR LED)Tipo de objetivoMotorized vari-focalMontura del objetivoφ14Distancia focal2.7 mm–12 mmApertura máximaF1.8Ángulo de visiónH: 113°–47°; V: 60°–26°; D: 133°–53°Control de irisAutoDistancia mínima de enfoque1.5 m (4.92 ft)Resolución8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Día y nocheAuto(ICR)/Color/B/WCompensación de contraluz (BLC)SíAtenuación de luces intensas (HLC)SíRango dinámico amplio (WDR)120 dBBalance de blancosAuto; natural; street lamp; outdoor; manual; regional customControl de gananciaAutoReducción de ruido3D NRRegion of Interest (RoI)Yes (4 areas)Image StabilizationElectronic Image Stabilization (EIS)Smart IlluminationSíAntinieblaSíImage Rotation0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)EspejoSíMáscara de privacidad8 areas
General
EPTZSíIVS (Perimeter Protection)Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detectionSMDSMD 3.0AcuPickUses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.AI SSASíPeople CountingTripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.Heat MapSíSmart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosAI CodingAI H.265; AI H.264Scene Self-adaptation (SSA)SíLDCSíUser/Host20 (Total bandwidth: 80 M)Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certificationSoftware de gestiónSmartPSS Lite; DSS; DMSSCertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Almacenamiento
Memoria ROM4 GBMemoria RAM2 GBAlmacenamientoFTP; SFTP; Micro SD card (support max. 512 GB); NAS
