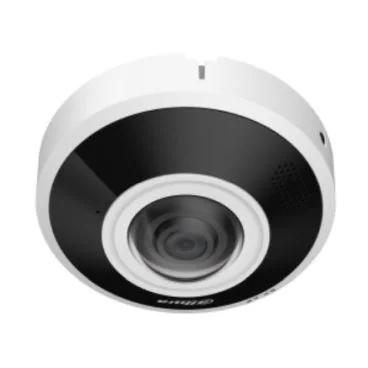

Dahua DH-IPC-EBW5641P-AS
Cámara IP fisheye de 6 MP con visión nocturna IR de 15 metros y protección IP67
6 MPLente fija 1,68 mmVisión nocturna IR 15 mAlimentación PoETarjeta MicroSD 1 TBProtección IP67
Supervisa espacios amplios con una lente ojo de pez de 360 grados que elimina las zonas ciegas. Este dispositivo cuenta con un sensor CMOS de alta definición y un sistema de corrección de distorsión avanzado, garantizando una imagen clara tanto en el centro como en los bordes del encuadre.
Gracias a sus capacidades de inteligencia artificial, la cámara ofrece funciones avanzadas como el recuento de personas, mapas de calor y protección perimetral. Además, incorpora micrófono y altavoz integrados para comunicación bidireccional, junto con un sistema de iluminación infrarroja de larga distancia para vigilancia efectiva en total oscuridad.
Especificaciones técnicas
Imagen y óptica
Sensor de imagen1/2.5" CMOSResolución máxima2560 (H) × 2560 (V)Sistema de exploraciónProgressiveObturador electrónicoAuto/Manual 1/3 s–1/100,000 sIluminación mínima0.006 [email protected] (Color, 30 IRE) 0.0006 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on)Relación señal/ruido>56 dBDistancia de iluminación1.68 mm: Up to 15 m (49.21 ft) (IR)Control de iluminadoresAuto;ManualNúmero de iluminadores3 (IR LED)Tipo de objetivoFixed-focalMontura del objetivoM12Distancia focal1.68 mmApertura máximaF2.0Ángulo de visión1.68 mm: H: 185°; V: 185°; D: 185°Control de irisFixedDistancia mínima de enfoque1.68 mm: 0.3 m (0.98 ft)Resolución6M (2560 × 2560); 4M (2048 × 2048); 1.6M (1280 × 1280); 2M (1440 × 1440); 1M (1024 × 1024); (720 × 720); SVCD (480 × 480); 2.5M (2560 × 960); 1.5M (2048 × 768); 1.3M (1920 × 720); (1280 × 480); (640 × 240); (1280 × 480); (640 × 240); VGA (640 × 480); QVGA (320 × 240); 3M (2048 × 1536); 2.7M (1920 × 1440); XVGA (1024 × 768); UVGA (1600 × 1200)Día y nocheAuto(ICR)/Color/B/WCompensación de contraluz (BLC)SíAtenuación de luces intensas (HLC)SíRango dinámico amplio (WDR)120 dBBalance de blancosAuto; natural; street lamp; outdoor; manual; regional customControl de gananciaAuto/ManualReducción de ruido3D NRRegion of Interest (RoI)Yes (4 areas)AntinieblaSíImage Rotation0°/180°EspejoSíMáscara de privacidad4 mosaics + 4 color blocks
Vídeo y audio
Compresión de vídeoH.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)Fotogramas por segundoMax Resolution in O Mode by Default Main stream: 2560 × 2560@(1–25/30 fps) sub stream: 1440 × 1440@(1–25/30 fps) third stream: 1440 × 1440@(1–25/30 fps) Resolution of 2 Split Windows in 2P Mode: Sub stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); Resolution of 2 Split Windows in 2R Mode: Sub stream: Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 2560 × 960@(1–25/30 fps); 1280 × 480@(1–25/30 fps); 640 × 240@(1–25/30 fps); Resolution of 4 Split Windows in 4R Mode: sub stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps); third stream: Panoramic View and Split Window: 1920 × 1440@(1–25/30 fps); 640 × 480@(1–25/30 fps); 320 × 240@(1–25/30 fps);Streaming Capability3 streamsControl de tasa de bitsVBR;CBR;ABRTasa de bits de vídeoH.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbpsMicrófono integradoYes, built-in dual MicBuilt-in SpeakerYes, built-in speakerCompresión de audioPCM; G.711a; G.711Mu; G.726Entrada de audio1 channel (RCA port)Salida de audio1 channel (RCA port)
Red y protocolos
Puerto de redRJ-45 (10/100 Base-T)SDK and APISíProtocolos de redIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2PInteroperabilidadONVIF (Profile S & Profile G & Profile T); CGINavegadorIE: IE11; Chrome; Firefox
General
EPTZSíIVS (Perimeter Protection)Tripwire, intrusion (the two functions support accurate detection of human)People CountingTripwire people counting, generating and exporting report (day/month/year); queue management and people counting in area, generating and exporting report (day/month); 4 rules can be set for tripwire, people counting in area and queue management.Heat MapSíSmart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.AI CodingAI H.265; AI H.264 *Includes smart codec technology, Smart H.265+ and Smart H.264+Scene Self-adaptation (SSA)SíDecoding ModeFront-dewarp;Back-dewarpUser/Host20SecurityDigest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warningRS-4851 (baud rate range: 1200 bps–115200 bps)Anti-corrosion LevelBasic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.Display modeFront-dewarp (hardware decoding): 1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R 2P/2R: Supports split screen for 2 windows. 4R: Supports split screen for 4 windows. *O: Fisheye image view; P: Panoramic image view; R: Region image view. Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid)Software de gestiónSmart PSS Lite; DSS; DMSS; DoLynk CareCertificationsCE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Dimensiones y montaje
InstalaciónCeiling mount; wall mount; ground mountCasing MaterialMetal + plasticDimensionesΦ122 mm × 53.3 mm (Φ4.80" × 2.10")Peso neto0.46 kg (1.01 lb)Peso bruto0.75 kg (1.65 lb)
Condiciones de uso
Temperatura de funcionamiento–30 °C to +60 °C (–22 °F to +140 °F)Humedad de funcionamiento≤95% (RH), non-condensingTemperatura de almacenamiento–30 °C to +60 °C (–22 °F to +140 °F)Humedad de almacenamiento≤95% (RH), non-condensingGrado de protecciónIP67; IK10
Detección y alarmas
Detección de movimientoOFF/ON (4 areas, rectangular)Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; tripwire; intrusion; audio detection; intensity change; voltage detection; external alarm; people counting in area; stay detection; people counting; abnormal number of people detection; security exceptionEntrada de alarma1 channel in: wet contact, 5 mA 3–5 VDCSalida de alarma1 channel out: wet contact, 300 mA 12 VDC
Almacenamiento
Memoria ROM4 GBMemoria RAM1 GBAlmacenamientoFTP; SFTP; Micro SD card (support max. 1TB); NAS
Alimentación
Alimentación12 VDC, 1 A; PoE (802.3af)Dual Power BackupWhen the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.ConsumoBasic: 1.4 W (12 VDC), 2.6 W (PoE); Max.: 8.1 W (12 VDC), 10.1 W (PoE) (ICR switch + IR intensity)
