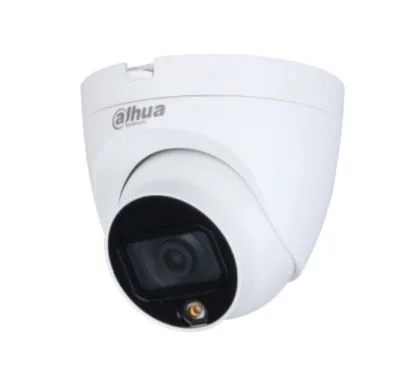

Dahua DH-HAC-HDW1239TLQP-IL-A-0280B-S2 DH-HAC-HDW1239TLQP-IL-A-0280B-S2
Base imponible 36,24 € + 21 % de IVA
Descripción
HAC-HDW1239TLQP-IL-A
2MP Smart Dual Illuminators HDCVI Fixed-focal Eyeball Camera
* The parameters and datasheets below can only be applied to1239-IL series.
* In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
> Max. 30 fps@1080p.
> 130 dB true WDR, 3D NR.
> Smart Dual Illuminators.
> 20 m illumination distance.
> Super Adapt.
> Built-in MIC (-A).
> Quick-to-install eyeball saves installation time.
> 2.8 mm fixed lens
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.
Camera | |||||
Image Sensor | 2 MP CMOS | ||||
Max. Resolution | 1920 (H) × 1080 (V) | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | ||||
Min. Illumination | 0.001 [email protected] (Color, 30IRE) | ||||
S/N Ratio | >65 dB | ||||
Illumination Distance | IR: 20 m (65.62 ft) | ||||
Illuminator On/Off Control | Auto/Manual | ||||
Illuminator Number | 1 (Warm light); 1 (IR light) | ||||
Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
Lens | |||||
Lens Type | Fixed-focal | ||||
Auto Focus | No | ||||
Lens Mount | M12 | ||||
Focal Length | 2.8 mm | ||||
Max. Aperture | F1.6 | ||||
Field of View | 2.8 mm: H: 108°; V: 58°; D: 127°Iris Control | ||||
Fixed | |||||
Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft)DORI Distance | ||||
Lens | Detect | Observe | Recognize | Identify | |
2.8 mm | 42.2 m (138.45 ft) | 16.9 m (55.45 ft) | 8.4 m (27.56 ft) | 4.2 m (13.78 ft) | |
Video | |||||
Video Frame Rate | CVI: | ||||
Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) | ||||
Day/Night | Auto(ICR)/Color/B/W | ||||
BLC | BLC; HLC; WDR | ||||
WDR | 130 dB | ||||
White Balance | Auto; Area white balance | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D NR | ||||
Illumination Mode | Smart IR&WL; WL Mode; IR Mode | ||||
Mirror | Yes | ||||
Privacy Masking | Off/On (8 areas, rectangle) | ||||
Certification | |||||
Certifications | CE (EN55032, EN55024, EN50130-4) | ||||
Port | |||||
Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
Audio Input | One channel built-in MIC (-A) | ||||
Power | |||||
Power Supply | 12 VDC ± 30% | ||||
Power Consumption | Max 2.7 W (12 VDC, IR on) | ||||
Environment | |||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
Operating Humidity | < 95% (RH), non-condensing | ||||
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
Storage Humidity | < 95% (RH), non-condensing | ||||
Protection | IP67 | ||||
Structure | |||||
Casing Material | Dome (metal + plastic) + plastic enclosure | ||||
Product Dimensions | Φ97.1 mm × 92.9 mm (Φ3.82" × 3.66") | ||||
Net Weight | 0.23 kg (0.51 lb) | ||||
Gross Weight | 0.34 kg (0.75 lb) | ||||
Installation | Wall mount; ceiling mount; vertical pole mount |
