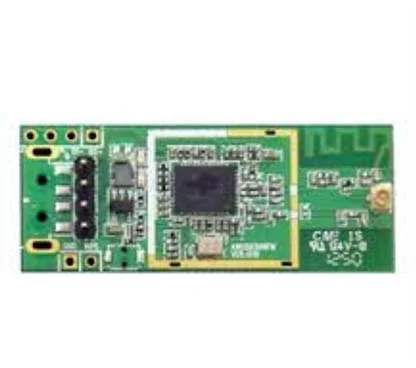

Alfa Network US036NFM-I Chipset Ralink RT5370, USB Pin Hole, External Antenna (IPEX), Wireless: IEEE 802.11b/g/n

Alfa Networks US036NFM-I 802.11n USB Module (RT5370) Application ►IP Camera ►Media Box ►Android TV Box ►POS System ►Medical Device ►Self-Service KIOSK Key Features ►Ralink RT5370 ►WPS connector ►Compliant with 802.11b/g/n ►Speed up to 150Mbps ►Soft AP supported ►Support Windows 2000/XP/ Vista/Win7/Win8, Linux, MAC driver Specification Model US036NFM Chipset Ralink RT5370 Standards Wireless: IEEE 802.11b/g/n Frequency Range 2.412 ~ 2.483 GHz Data Rate 802.11b: UP to 11Mbps, 802.11g: UP to 54Mbps 802.11n: UP to 150Mbps Serial Interface 4 Pin Header for RS232 OS Supported Windows 2000, XP, Vista, Win7, Win8 Mac 10.4, 10.5, 10.6 and Linux Support Soft AP Channels 1~11 channels ( North America ) 1~13 channels ( General Europe) 1~14 channels (Japan) Sensitivity 11b: -96dBm 11g: -91dBm 11n: -87dBm Data Modulation Type BPSK,QPSK, CCK and OFDM Power Voltage: 5V+5% Security WEP 64/128, 802.1X support, Wi-Fi Protected Access (WPA), WPA-PSK, WPA II-PSK, Cisco CCX support, WAPI-PSK, WAPI-CERT Operating Temperature 0℃ ~ 50℃ Storage Temperature -40℃ ~ 70℃ Humidity 5% ~ 98% non-condensing Dimensions 46*18 mm Order Information family US036xx Model USB Type A USB Pin Hole External Antenna (IPEX) Internal Antenna (2dBi) US036NFM ● ● US036NFM-I ● ● US036NFM-USB ● ● US036NFM-USB-I ● ●
